Technical Information
54
S 500 & S 600 Canister Vacuums
4.8 Potentiometer (and Indicator Light) Removal (S 51x)
1. Remove the casing top; see Section 020-4.2.
2. Remove the cap; see Section 030-4.1.
3. Remove the plug housing; see Section 030-4.7.
4. Use a screwdriver to release the 3 switch knob locking tabs; see Figure 030-
15, Item 1. Remove the switch knob.
5. Use a screwdriver to release the 3 potentiometer locking tabs; see Figure
030-15, Item 2. Remove the potentiometer.
6. If applicable, remove the indicator light from its holder. See Figure 030-15,
Item 3.

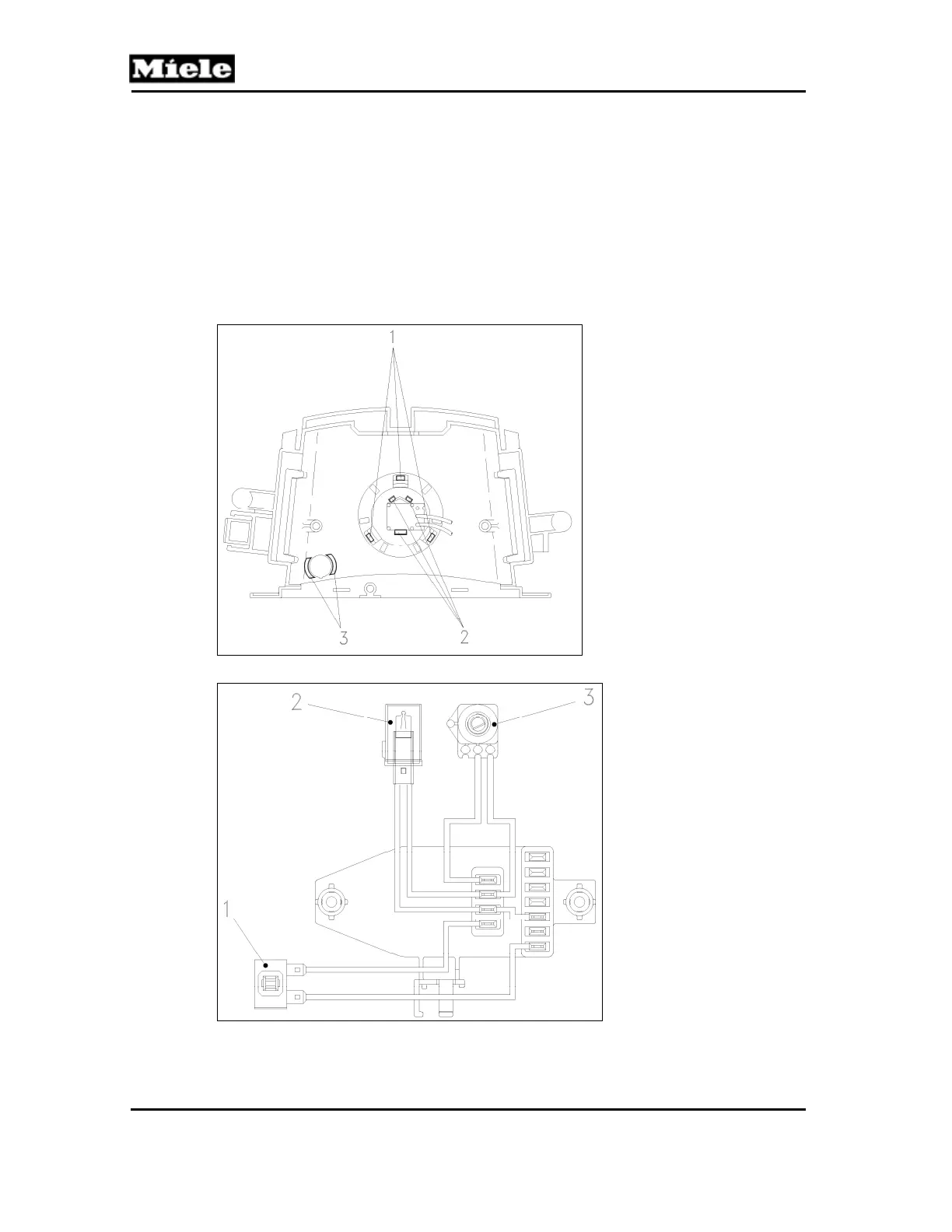

Figure 030-15: Potentiometer & Indicator Light Removal (S 51x)
Figure 030-16: Plug Housing (S 51x)
1 Switch
2 Indicator light (if applicable)
3 Potentiometer
