Miele S 528 - Figure 020-10: Slide Sleeve and Dust Channel Pre-Assembly; Figure 020-11: Slide Sleeve and Dust Channel Installation

Technical Information
34
S 500 & S 600 Canister Vacuums

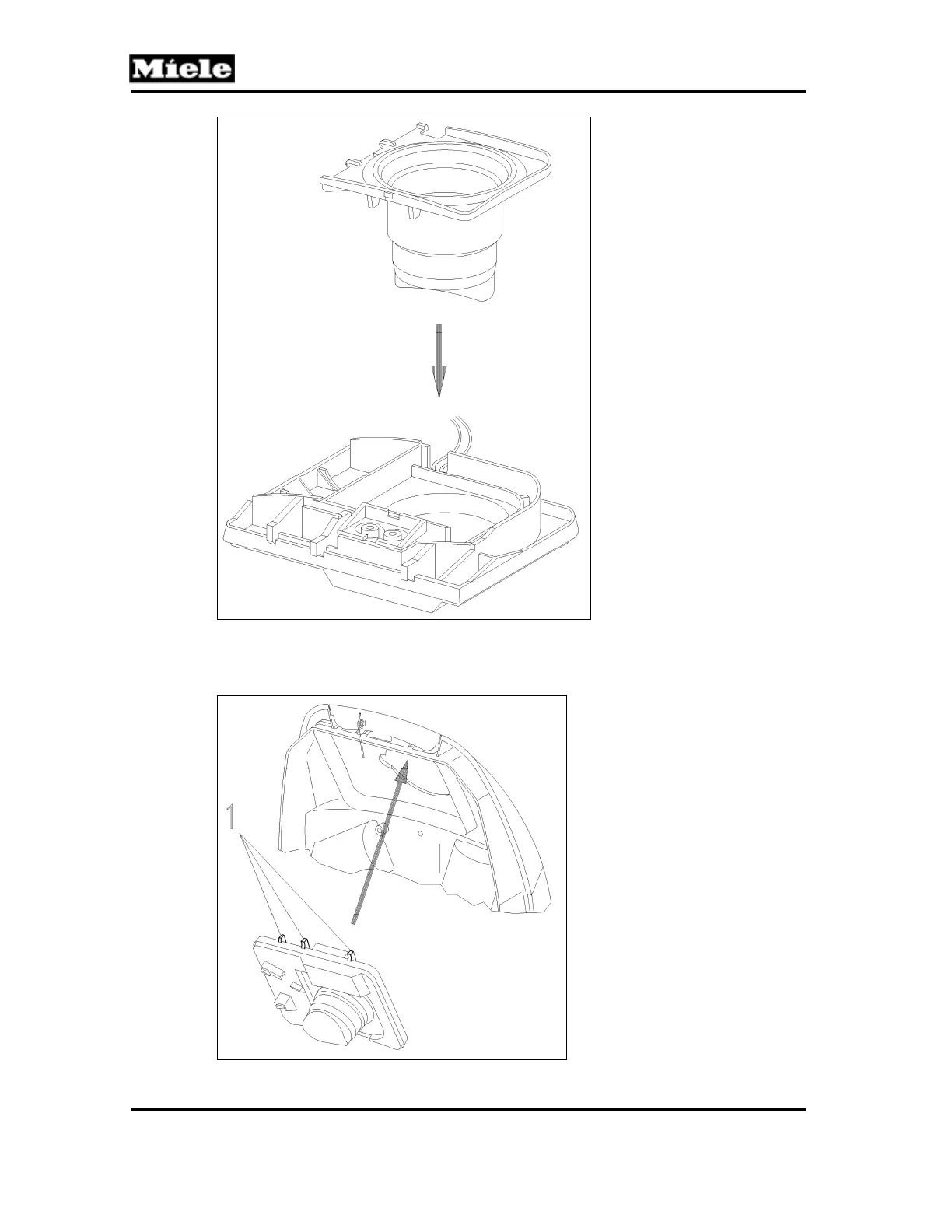

Figure 020-10: Slide Sleeve and Dust Channel Pre-Assembly
5. Insert the dust channel tabs (Figure 020-11, Item 1) first; then press the
assembly into place while holding the casing catch in position.
Figure 020-11: Slide Sleeve and Dust Channel Installation
