Technical Information
49
S
500 & S 600 Canister Vacuums
4 Service
4.1 Cap Removal
1. Remove the casing top; see Section 020-4.2.
2. Remove the cap retaining screw.
3. Pull the cap upwards at an angle. The locking tabs (Figure 030-6, Item 1)
will then be released.

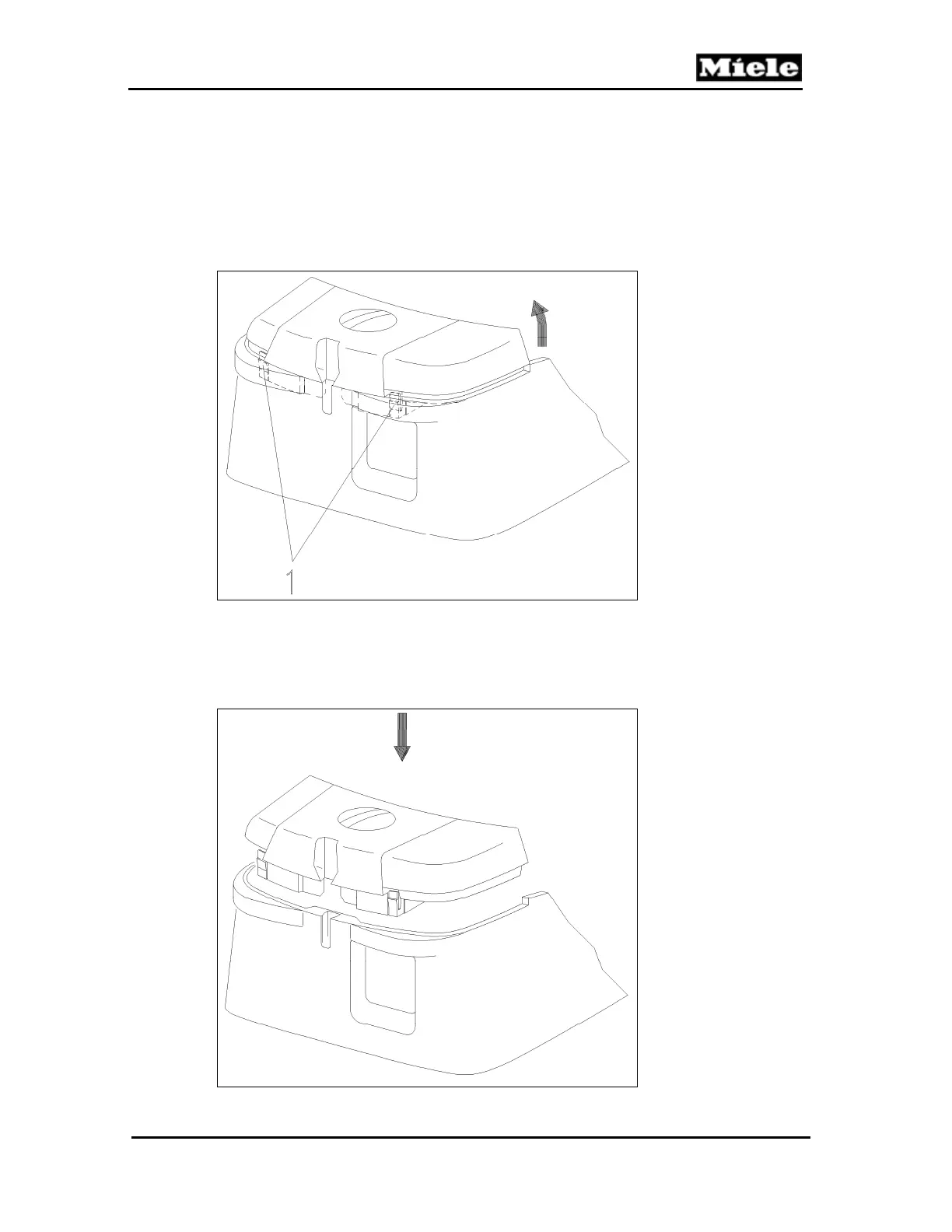

Figure 030-6: Cap Removal
4.2 Cap Installation
1. Locate the cap on its plug contacts, press it down straight and screw tight;
see Figure 030-7.
Figure 030-7: Cap Installation
