Miele S 528 - Figure 020-18: Removing the Cover Strip from Its Guide; Figure 020-19: Hinge Removal

Technical Information
38
S 500 & S 600 Canister Vacuums

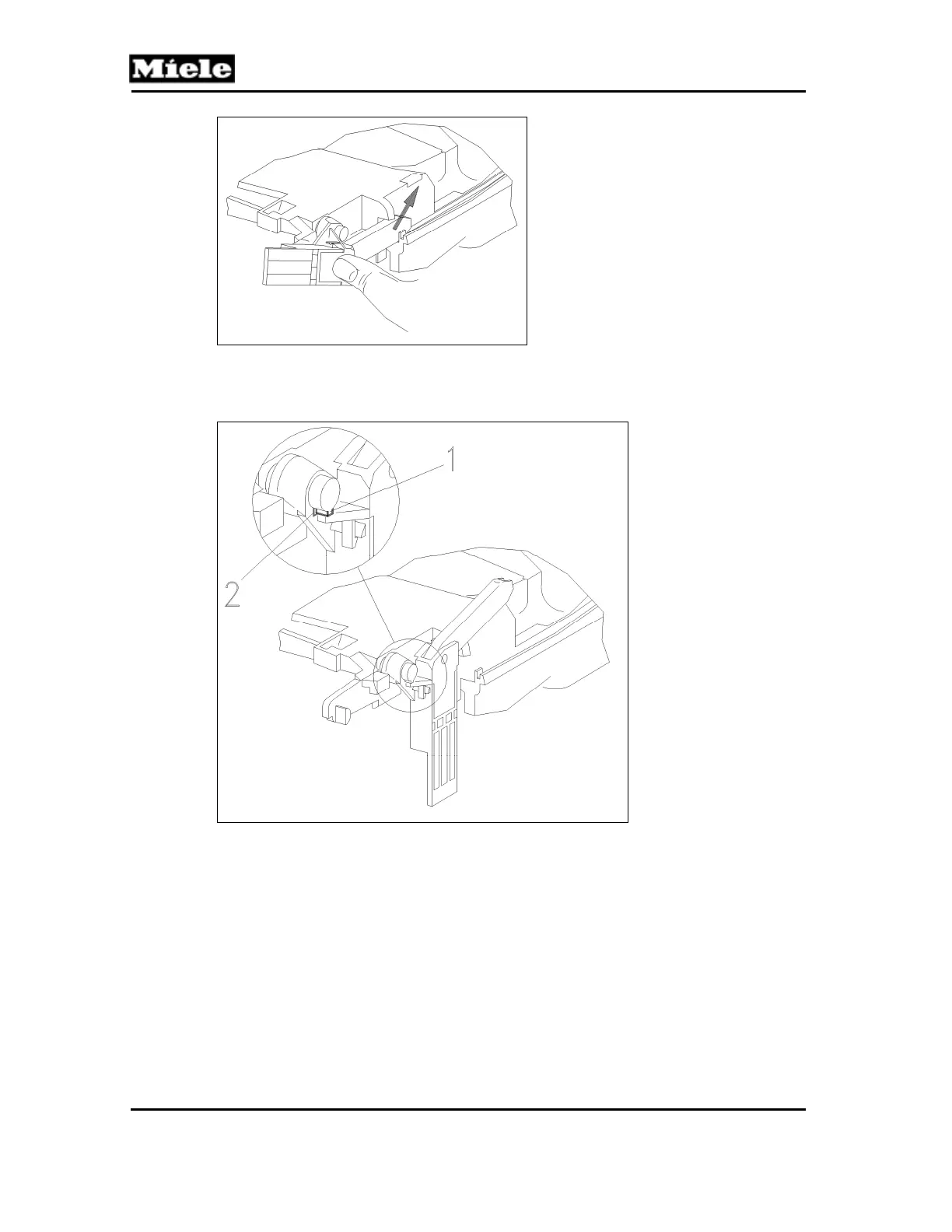

Figure 020-18: Removing the Cover Strip from Its Guide
8. Turn the hinge so that the locking tab (Figure 020-19, Item 1) lines up with
the hinge slot (Figure 020-19, Item 2). Remove the hinge.
Figure 020-19: Hinge Removal
9. Remove the cord guide with cover from the hinge; see Figure 020-20.
