Miele S 528 - S 54 x and S 55 x Models Component Layout

Technical Information
13
S
500 & S 600 Canister Vacuums
3 S 54x and S 55x Models

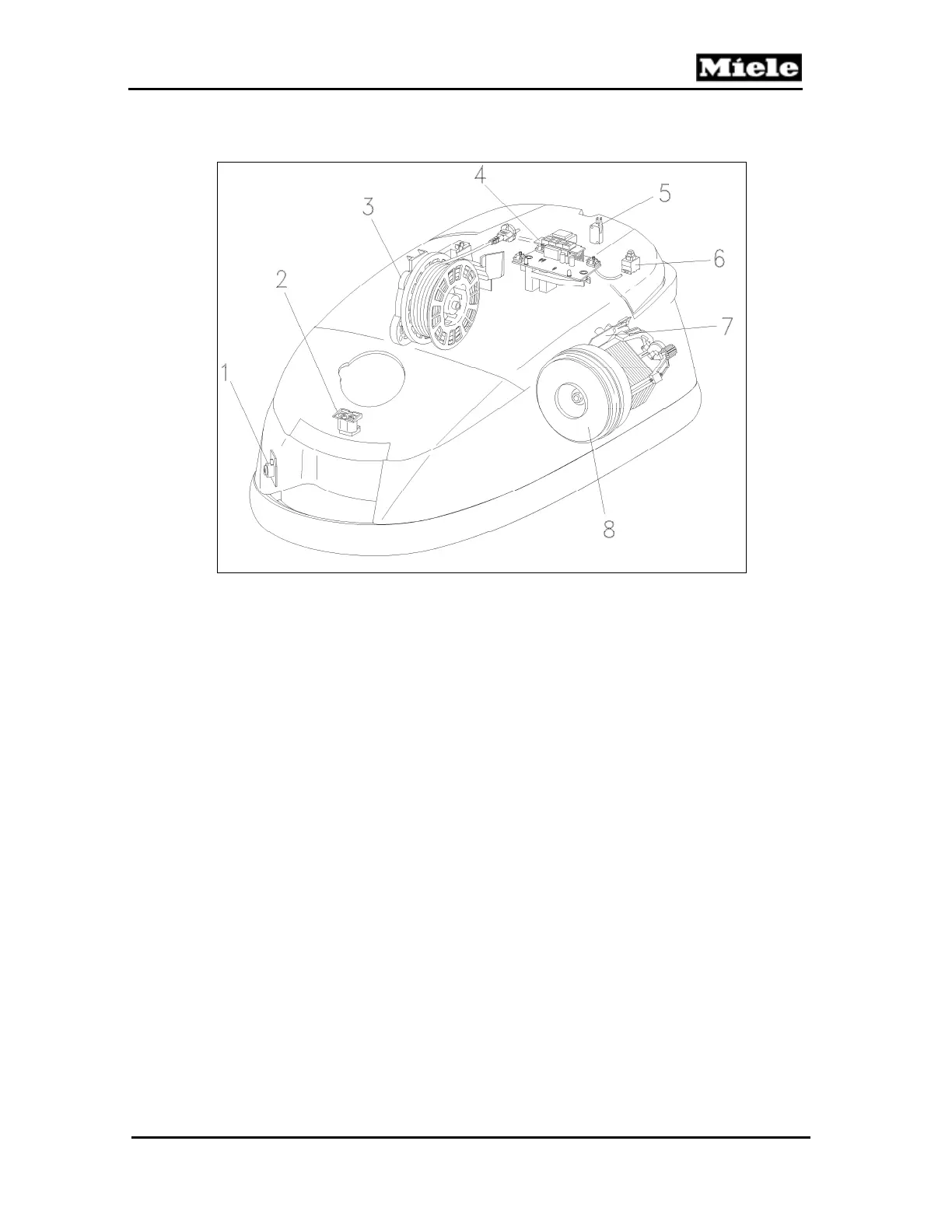

Figure D-3: S 54x and S 55x Component Layout
1
Vacuum pressure monitor B9/2
(S 544, S 548 only)
5
Park System switch Q2
2
Accessory socket X1/7
6
Main switch Q1
3
Cord reel W16
7
Motor electronic 1N2
4
Electronic control 1N1
8
Motor M2
