Miller Multimatic 255 - Threading Welding Wire for Spoolmate 200

OM-278174 Page 33
F
Complete Parts List is available at www.MillerWelds.com

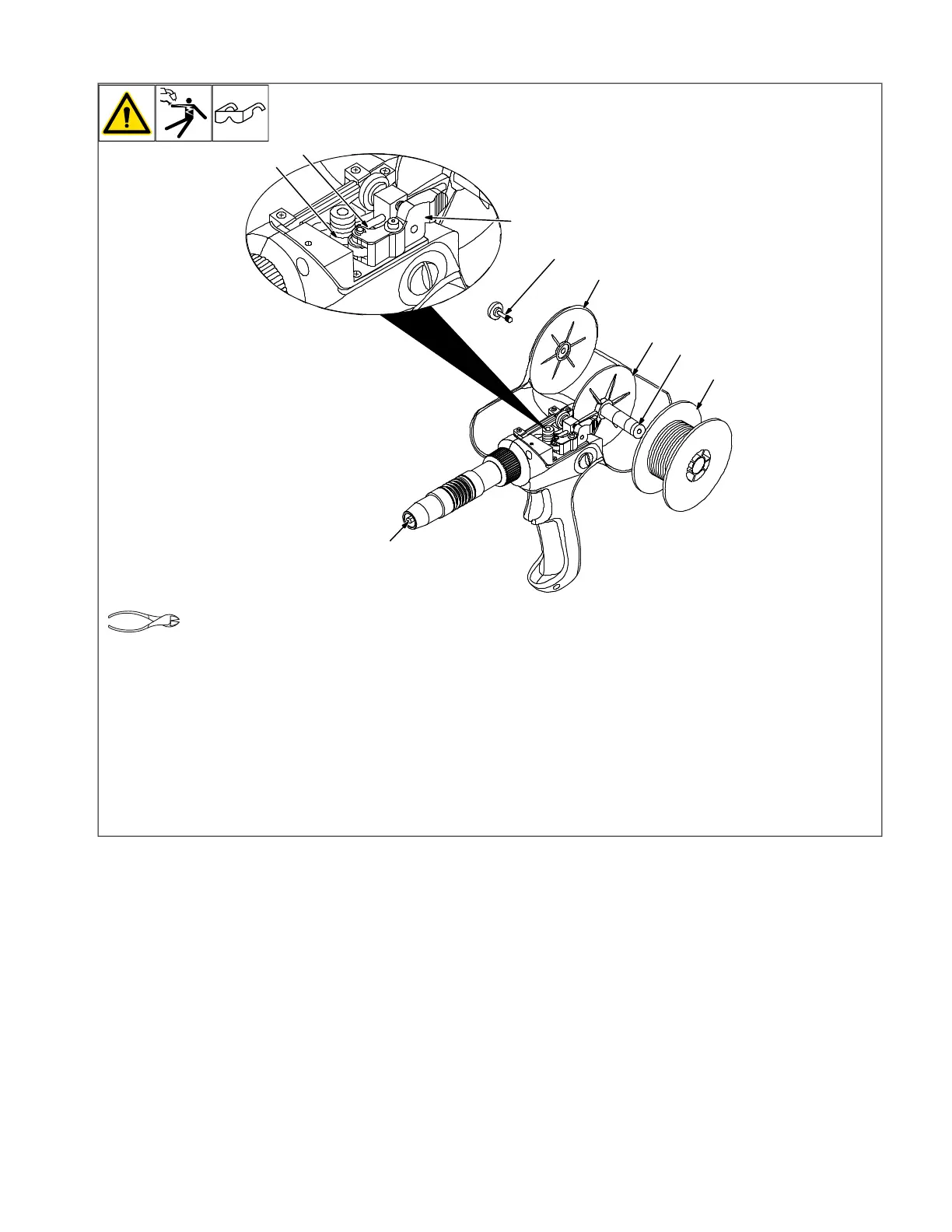

5-19. Threading Welding Wire For Spoolmate 200
Ref. 243 740-C
8
1
2
9
3
4
6
5
7
OM-222 Page 1
allen_wrench
NGO’s
tools/
flathead philips head wrench
pliers
knife
heavy-duty workclamp light-duty workclamp wirecutter frontcutter
allen_set
needlenose
steelbrush nutdriver
chippinghammer
solderiron
s
tripcrimp
drill
torque wrench
socket wrench
hammer awl file
crimper
paintbrush
feelergauge flashlight ruler
toothbrush
greasegun
qtip (swab)
vicegrip
handream
punch
filterwrench
strapwrench
airgun
solvent pinextractor eprompuller pipewrench
torque screwdriver
crescent wrench
1 Cover
2 Canister
3 Thumbscrew (Cover)
Loosen thumbscrew, and rotate cover open.
4 Wire Spool
Loosen wire from spool, cut off bent wire,
and pull 6 in (150 mm) of wire off spool.
5 Pressure Roll Assembly
Press arm inward to open pressure roll
assembly.
6 Wire Inlet Guide
7 Drive Roll Groove
8 Contact Tip
Thread wire through wire inlet guide, along
drive roll groove, and out contact tip.
Install spool so wire feeds off top.
9 Spool Brake Thumbnut
If necessary, turn thumbnut counterclock-
wise slightly to install spool.
Close cover and secure with thumbscrew.
