OM-278174 Page 15
F
Complete Parts List is available at www.MillerWelds.com

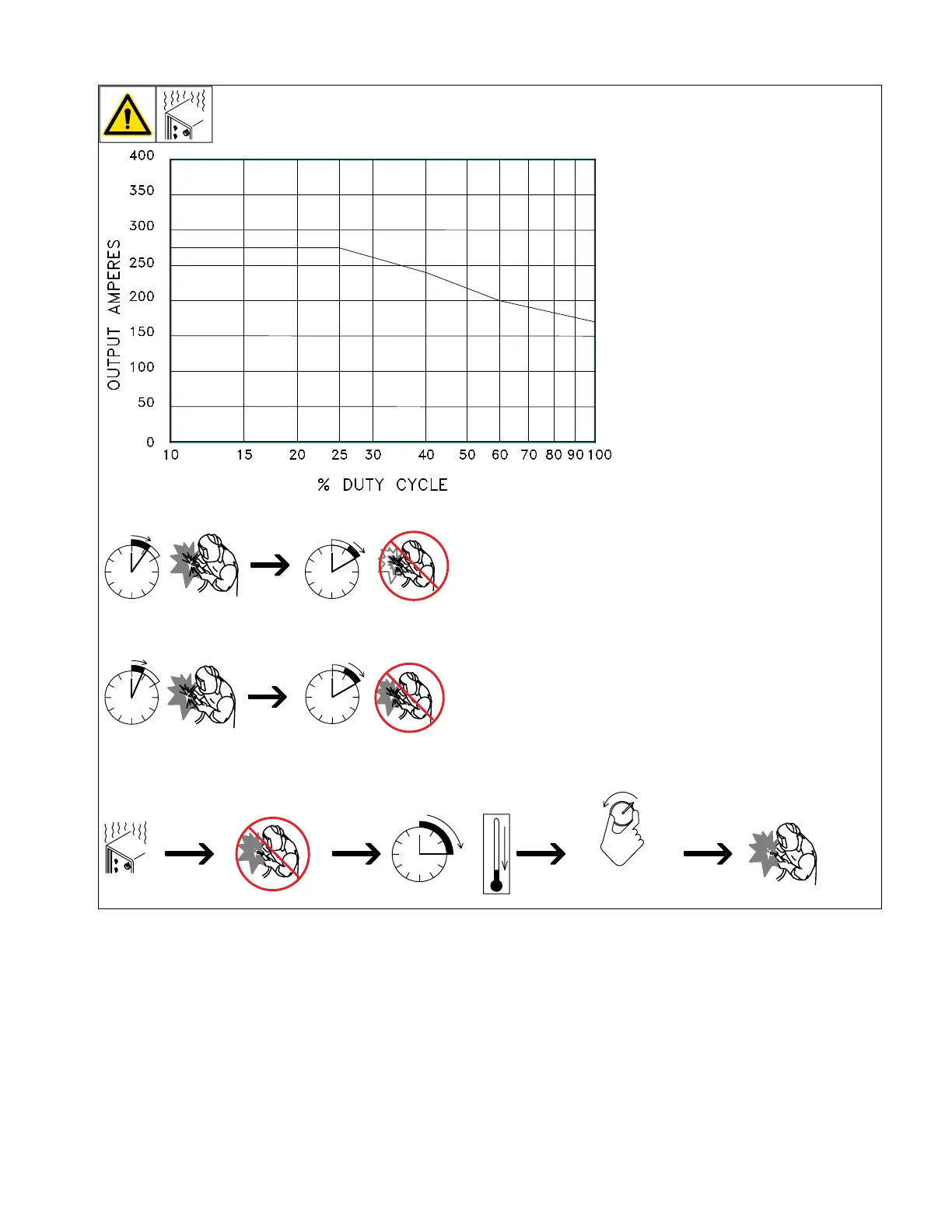

4-10. Duty Cycle And Overheating For Stick
Duty Cycle is percentage of 10 minutes that
unit can weld at rated load without
overheating.
If unit overheats, output stops. Wait fifteen
minutes for unit to cool. Reduce amperage or
duty cycle before starting to weld again.
NOTICE – Exceeding duty cycle can damage
unit and void warranty.
60% Duty Cycle At 200A
6 Minutes Welding 4 Minutes Resting
40% Duty Cycle At 240A
4 Minutes Welding 6 Minutes Resting
Overheating
0
15
A or V
OR
Reduce Duty Cycle
Minutes
