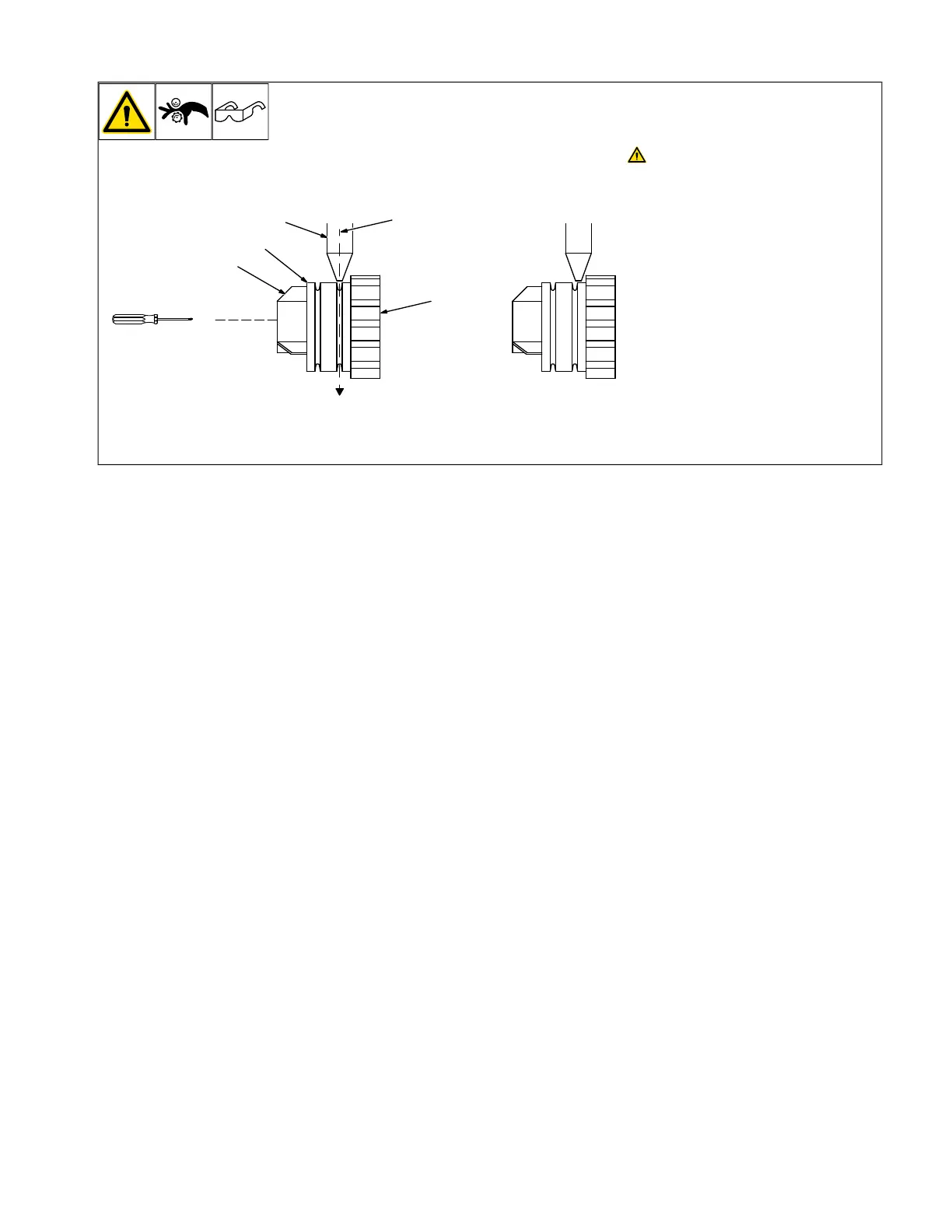

7-4. Aligning Drive Rolls And Wire Guide
Correct Incorrect
4
3
2
1
5
Turn Off Power.
View is from top of drive rolls looking down
with pressure assembly open.
1 Drive Roll Securing Nut
2 Drive Roll
3 Wire Guide
4 Welding Wire
5 Drive Gear
Insert screwdriver, and turn screw in or out
until drive roll groove lines up with wire
guide.
Close pressure roll assembly.
