OM-278174 Page 47
F
Complete Parts List is available at www.MillerWelds.com

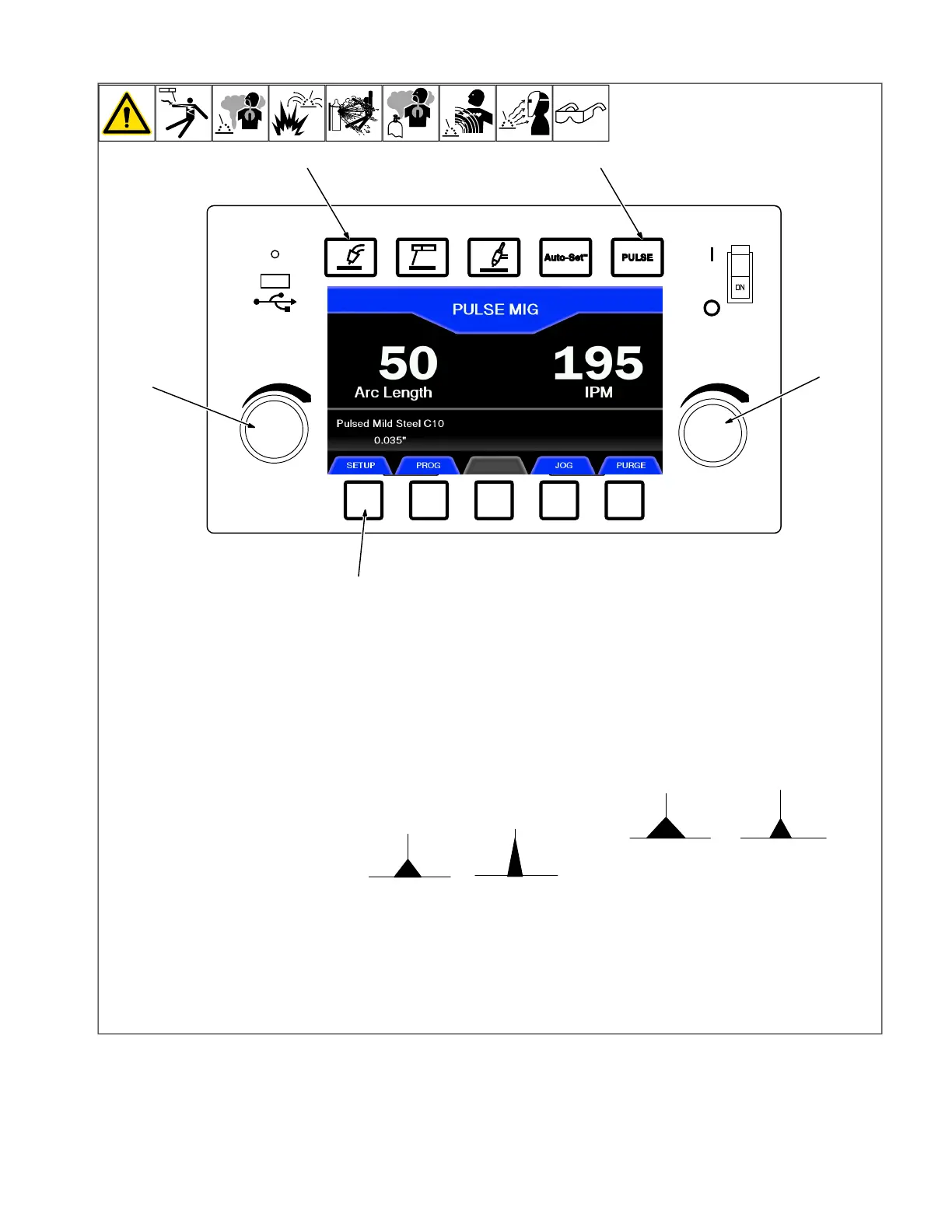

6-12. Pulsed MIG Manual Mode
1 MIG Process Button
2 Pulse Button
3 Set-Up Button
4 Left Knob
5 Right Knob
6 Home Button
Press MIG Process, Pulse and Set Up
buttons.
In the Setup menu, rotate left knob to high-
light material and gas. Rotate right knob to
select material and gas being used.
Rotate left knob to highlight wire diameter.
Rotate right knob to select wire diameter
being used.
Press Home to return to welding mode.
Operation
Adjust right knob for proper wire feed speed
and adjust left knob to change arc length if
required. Arc length will default to 50. Refer
to Pulse MIG welding chart for proper Wire
Speed setting for metal and metal thickness
being welded. All Pulse MIG programs are
set up with the gases listed in the Pulse MIG
welding chart. If alternate gases are used,
adjust arc length and/or arc control to adjust
arc characteristics.
Arc Length
Arc length can be adjusted from 0-99. All
Pulse MIG programs are set with a value of
50. Adjusting the arc length will vary the
length of the welding arc cone.
High Setting
Low Setting
(0 Setting)
(99 Setting)
If a gas is used other than what is listed on
the Pulse MIG welding program chart, the
Arc Length can be adjusted to help custom-
ize your arc to the gas being used.
Arc Control
Press Setup button to enter Setup menu.
Rotate left knob to select Arc Control. The
setting can be adjusted from 0 to 50. All
Pulse MIG welding programs are designed
with a setting of 25. Using the right knob to
adjust the Arc Control setting will vary the
width of the welding arc cone.
Low Setting High Setting
(0 Setting)
(50 Setting)
If a gas is used other than what is listed on
the Pulse MIG welding program chart, the
Arc Control can be adjusted to help custom-
ize your arc to the gas being used.
