Miller Multimatic 255 - Installing Wire Spool and Adjusting Hub Tension

OM-278174 Page 28
F
Complete Parts List is available at www.MillerWelds.com

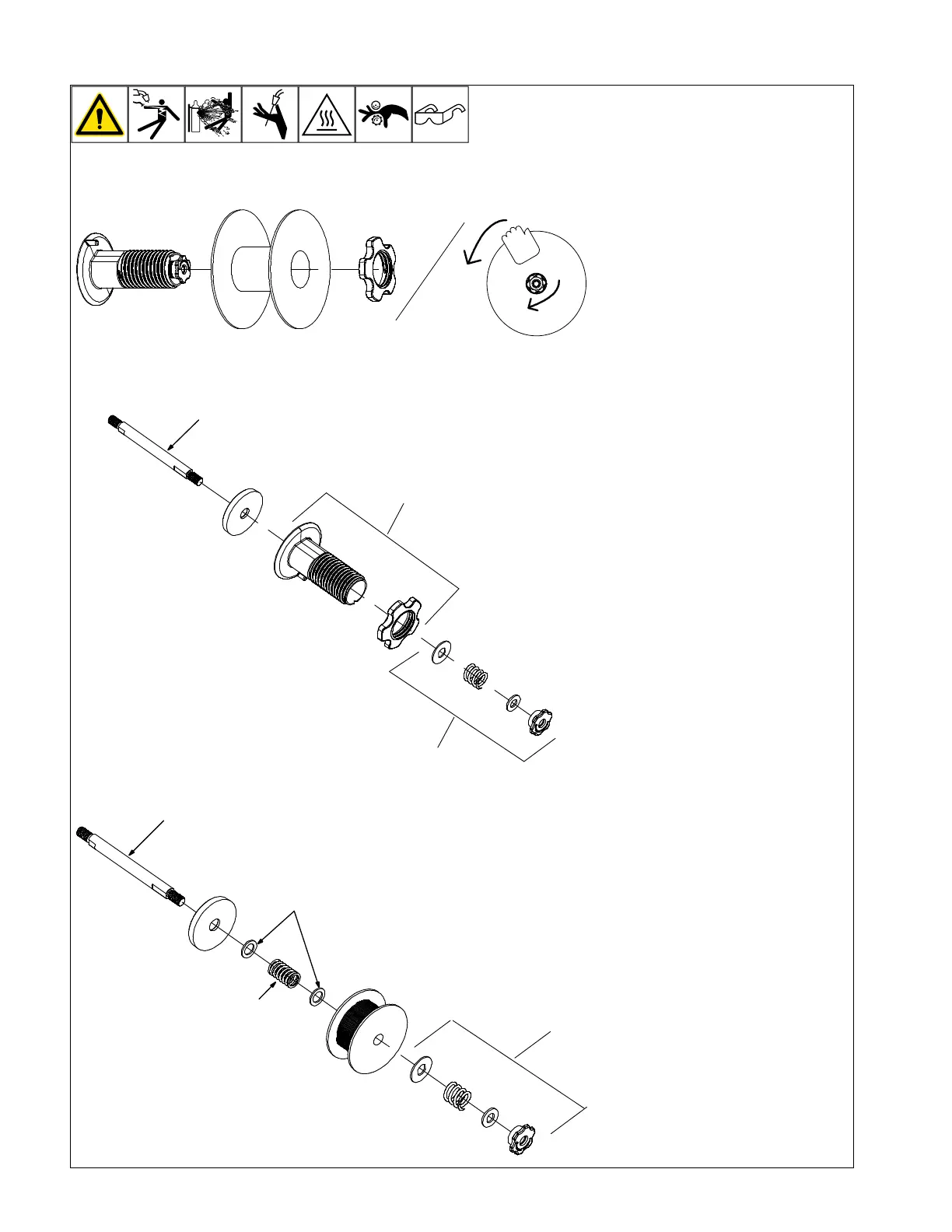

5-14. Installing Wire Spool And Adjusting Hub Tension
Installing 8 in. (203 mm) Wire Spool
Hand tighten knob clockwise. When a slight
force is needed to turn spool, tension is set
Removing 8 in. (203 mm) Spool Hub And Spool Nut
1
2
3
1 Spindle
2 Spool Hub And Nut—For 8 in. (203 mm)
Spool Only
3 Spindle Hardware
Remove spindle hardware and retain. Re-
move spool hub and spool nut and retain for
future use.
Installing 4 in. (102 mm) Wire Spool
4
5
6
7
4 Spindle
5 Washer, Flat
Order two additional flat washers (Part
No. 605941).
6 Spring, Compression
Order one additional spring (Part No.
186437).
7 Spindle Hardware
Install Spindle hardware on spindle in exact
order as shown and tighten slightly.
