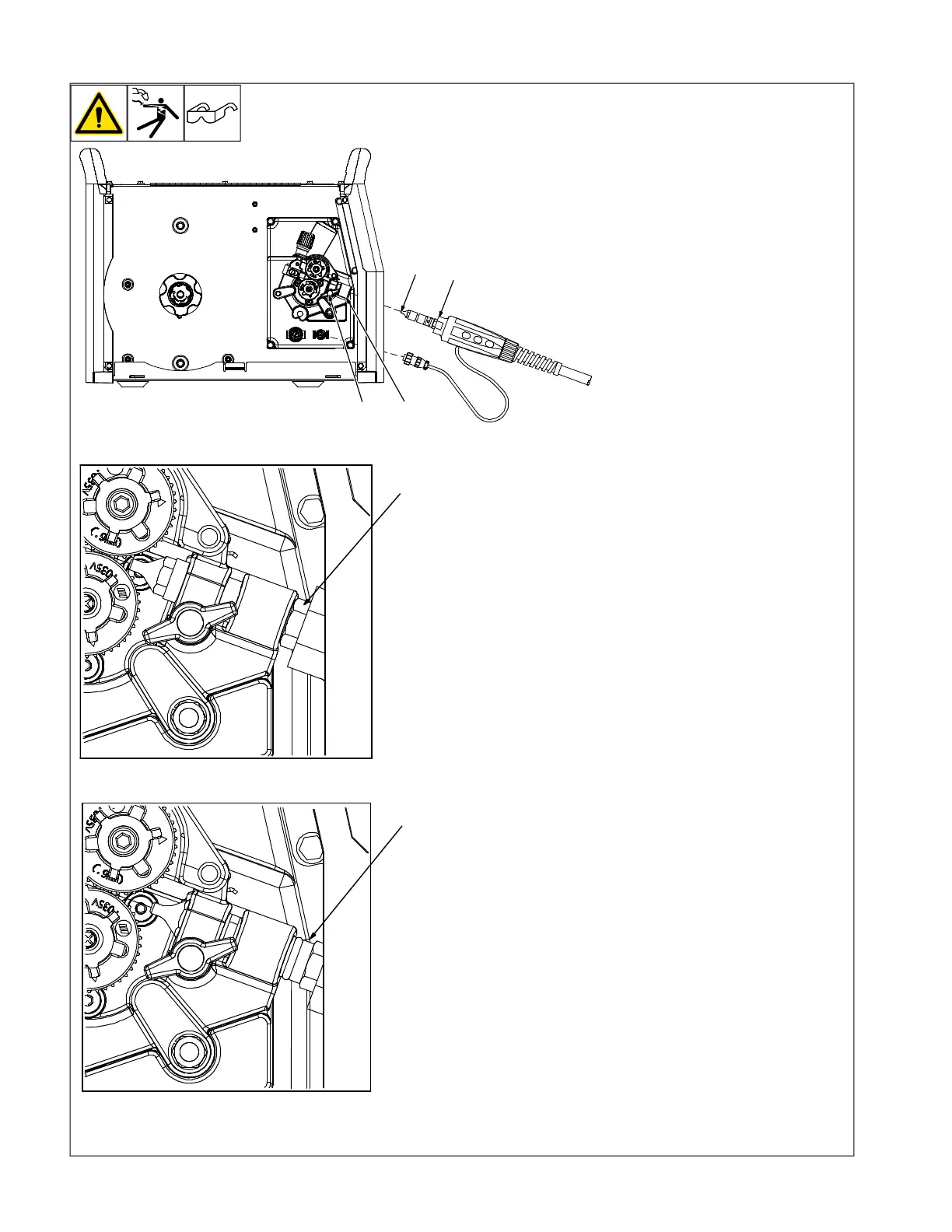

5-10. MIG Gun Connection Inside Unit
3
2
1
4
Correct
4
Incorrect
4
282950A
1 Gun Securing Knob
2 Gun Block
3 Gun Outlet Wire Guide
4 Gun End
Loosen knob. Insert end of gun through
opening in front panel until gun end bot-
toms against gun block.Tighten knob.
F
Be sure that gun end is tight against
drive assembly.
