5-17. Connecting XR-Aluma-Pro Or XR-Aluma-Pro-Lite
803463 / 282952A
3
2
3/32 in.
(2.4 mm)
1
5
4
OM-222 Page 1
allen_wrench
NGO’s
tools/
flathead philips head wrench
pliers
knife
heavy-duty workclamp light-duty workclamp wirecutter frontcutter
allen_set
needlenose
steelbrush nutdriver
chippinghammer
solderiron
s
tripcrimp
drill
torque wrench
socket wrench
hammer awl file
crimper
paintbrush
feelergauge flashlight ruler
toothbrush
greasegun
qtip (swab)
vicegrip
handream
punch
filterwrench
strapwrench
airgun
solvent pinextractor eprompuller pipewrench
torque screwdriver
crescent wrench

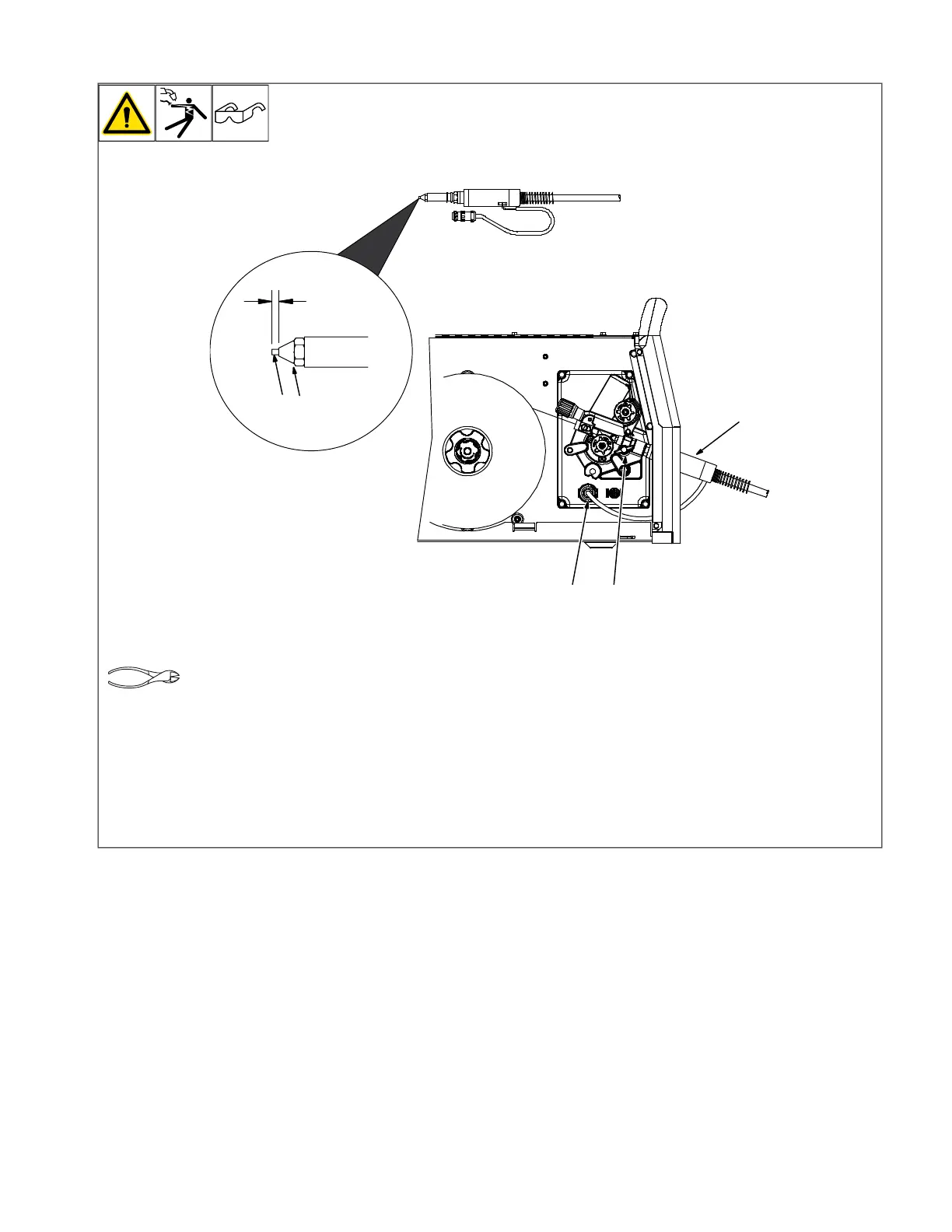

1 Gun End
2 Gun Liner
3 Wire Outlet Guide
Trim excess liner from end of gun so no
more than 3/32 in. (2.4 mm) of liner extends
past wire outlet guide
4 Gun Securing Knob
Loosen securing knob. Insert gun end
through opening until it bottoms against
drive assembly (make sure gun end does
not touch drive rolls). Tighten knob.
Be sure to change drive rolls to the proper
size and type.
5 Gun Trigger Plug
Insert plug into receptacle, and tighten
threaded collar.
