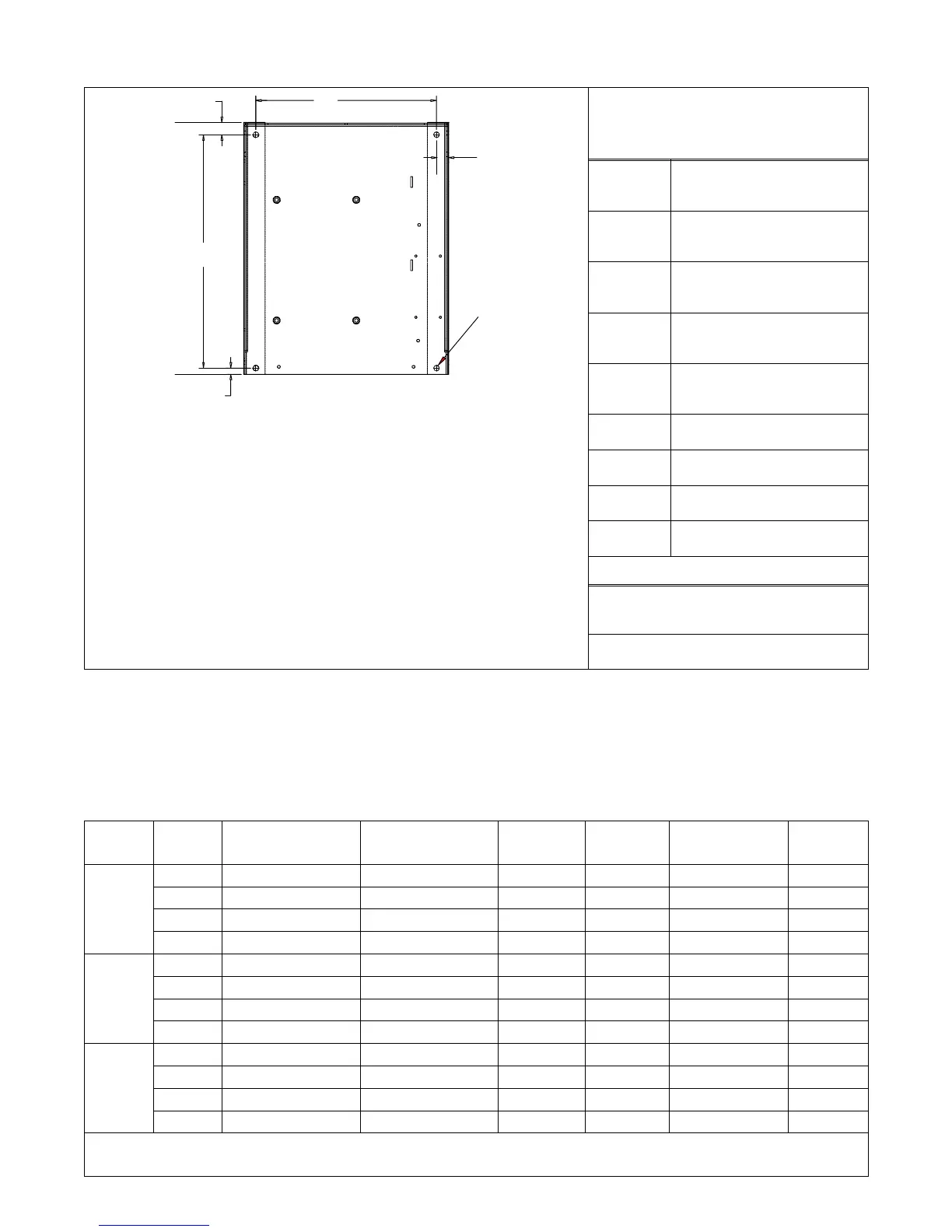

2-3. Dimensions And Weights
Front
804 239-B
A
F
E
C
B
D
Dimensions
Height 29-3/4 in. (756 mm)
Width 17-1/4 in. (438 mm)
Length 23-1/2 in. (597 mm)
A 19-1/16 in. (484 mm)
B 1 in. (25 mm)
C 14-3/4 in. (375 mm)
D 1 in. (25 mm)
E 1/2 in. (13 mm)
F 4 Holes 7/16 in. dia (11 mm)
Weight
228-1/2 lbs (104 kg)
244-1/2 lbs (111 kg)*
* TIGRunner models
2-4. Serial Number And Rating Label Location
The serial number and rating information for the power source is located on the front of the machine. Use the rating labels to determine input power
requirements and/or rated output. For future reference, write serial number in space provided on back cover of this manual.
2-5. Specifications
Model Mode
Rated Output at 40%
Duty Cycle
Rated Input,
60 HZ, Single-Phase
KVA KW
Welding
Amperage Range
Max. OCV
208-230
DC TIG 150 Amps at 16 Volts 208−230 V - 45 A - (2)* 10.2 - (0.50)* 4.3 - (0.3)* 5−200 80
DC Stick 150 Amps at 26 Volts 208-230 V - 47 A - (2)* 10.8 - (0.50)* 5.8 - (0.3)* 5−200 80
AC TIG** 150 Amps at 16 Volts 208-230 V - 54 A - (2)* 12.3 - (0.50)* 4.5 - (0.3)* 5−200 80
AC Stick 150 Amps at 26 Volts 208-230 V - 54 A - (2)* 12.4 - (0.50)* 6 - (0.3)* 5−200 80
460
DC TIG 150 Amps at 16 Volts 460 V - 22 A - (1)* 10.2 - (0.50)* 4.3 - (0.3)* 5−200 80
DC Stick 150 Amps at 26 Volts 460 V - 25 A - (1)* 10.8 - (0.50)* 5.8 - (0.3)* 5−200 80
AC TIG** 150 Amps at 16 Volts 460 V - 28 A - (1)* 12.3 - (0.50)* 4.5 - (0.3)* 5−200 80
AC Stick 150 Amps at 26 Volts 460 V - 28 A - (1)* 12.4 - (0.50)* 6 - (0.3)* 5−200 80
575
DC TIG 150 Amps at 16 Volts 575 V - 19 A - (.5)* 10.2 - (0.50)* 4.3 - (0.3)* 5−200 80
DC Stick 150 Amps at 26 Volts 575 V - 20 A - (.5)* 10.8 - (0.50)* 5.8 - (0.3)* 5−200 80
AC TIG** 150 Amps at 16 Volts 575 V - 22 A - (.5)* 12.3 - (0.50)* 4.5 - (0.3)* 5−200 80
AC Stick 150 Amps at 26 Volts 575 V - 22 A - (.5)* 12.4 - (0.50)* 6 - (0.3)* 5−200 80
* () While idling.
** Input amperage with AC Balance control in the balanced position. Input amperage may be higher with control in an unbalanced position.
