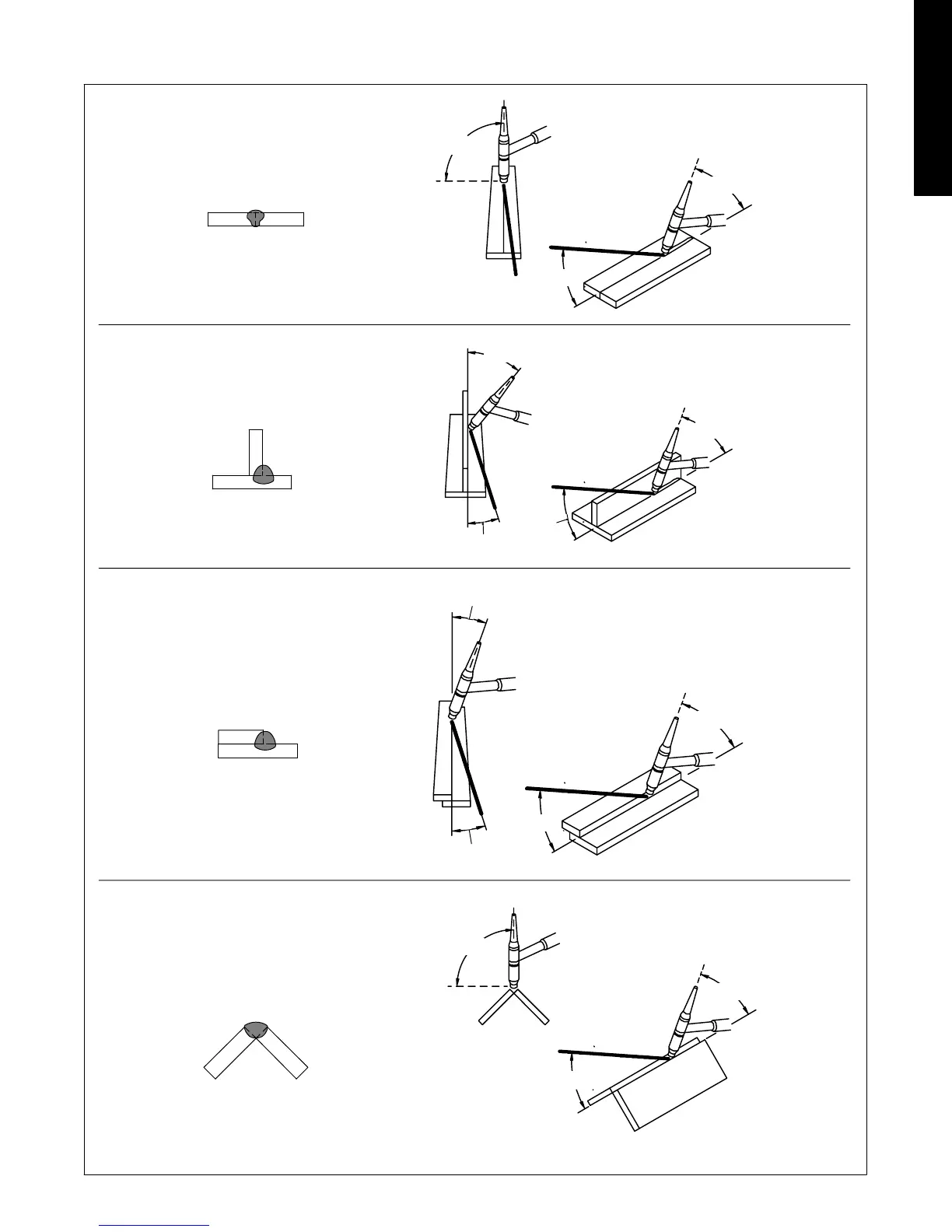

8-3. Positioning Torch Tungsten For Various Weld Joints
ST-162 003 / S-0792
70°
70°
90°
20°
20°
10°
20°
70°
40°
30°
20°
70°
90°
20°
Butt Weld And Stringer Bead
“T” Joint
Lap Joint
Corner Joint
