Miller Syncrowave 200 - AC Volt-Ampere Curves

OM-225 389 Page 8
2-8. AC Volt-Ampere Curves

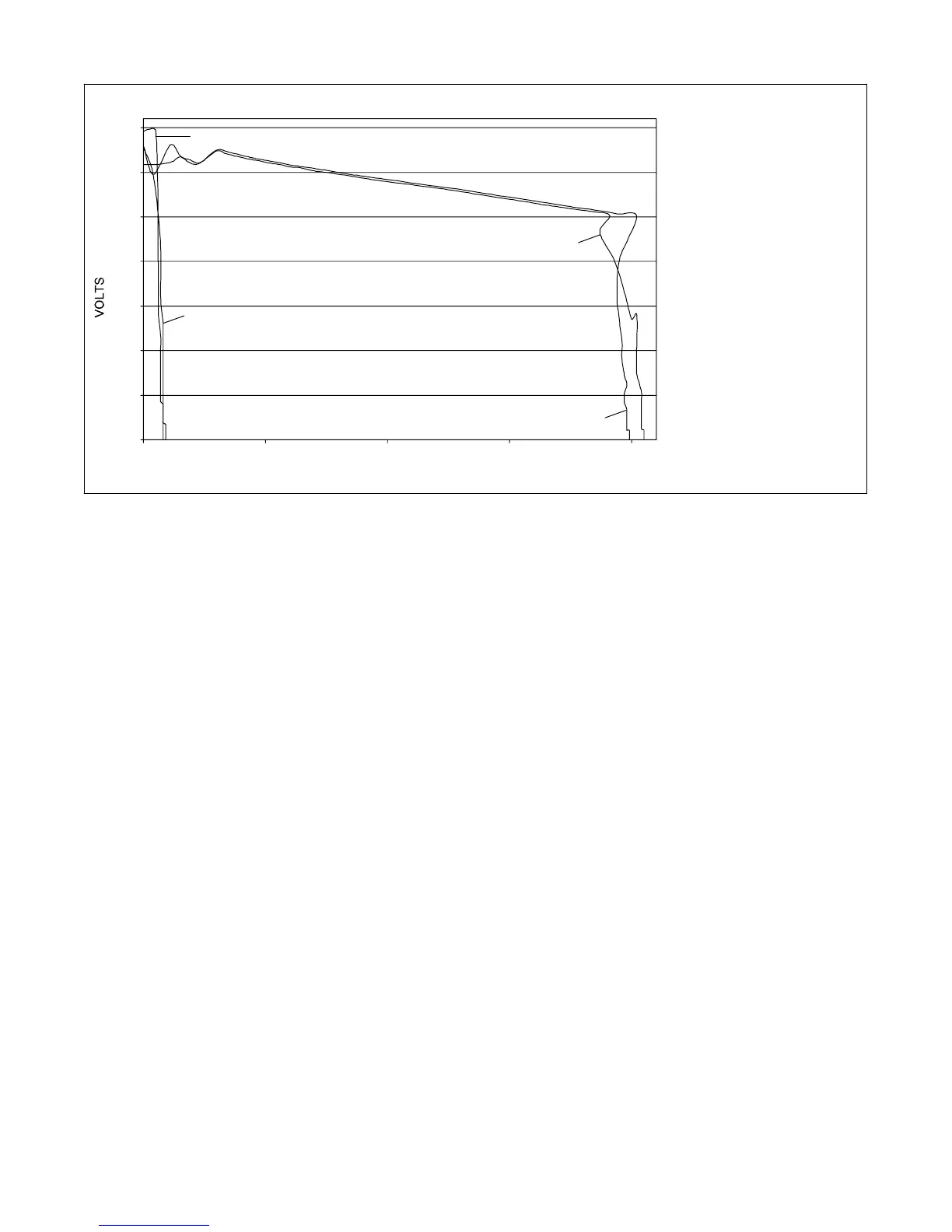

Volt-ampere curves show minimum
and maximum voltage and amper-
age output capabilities of welding
power source. Curves of other set-
tings fall between curves shown.
ssb1.1 10/91 − 226 799-A
AMPS
0
10
0 50 100 150 200
20
30
40
50
60
70
AC TIG Max
AC Stick Max
AC TIG Min
AC Stick Min
