OM-225 389 Page 10

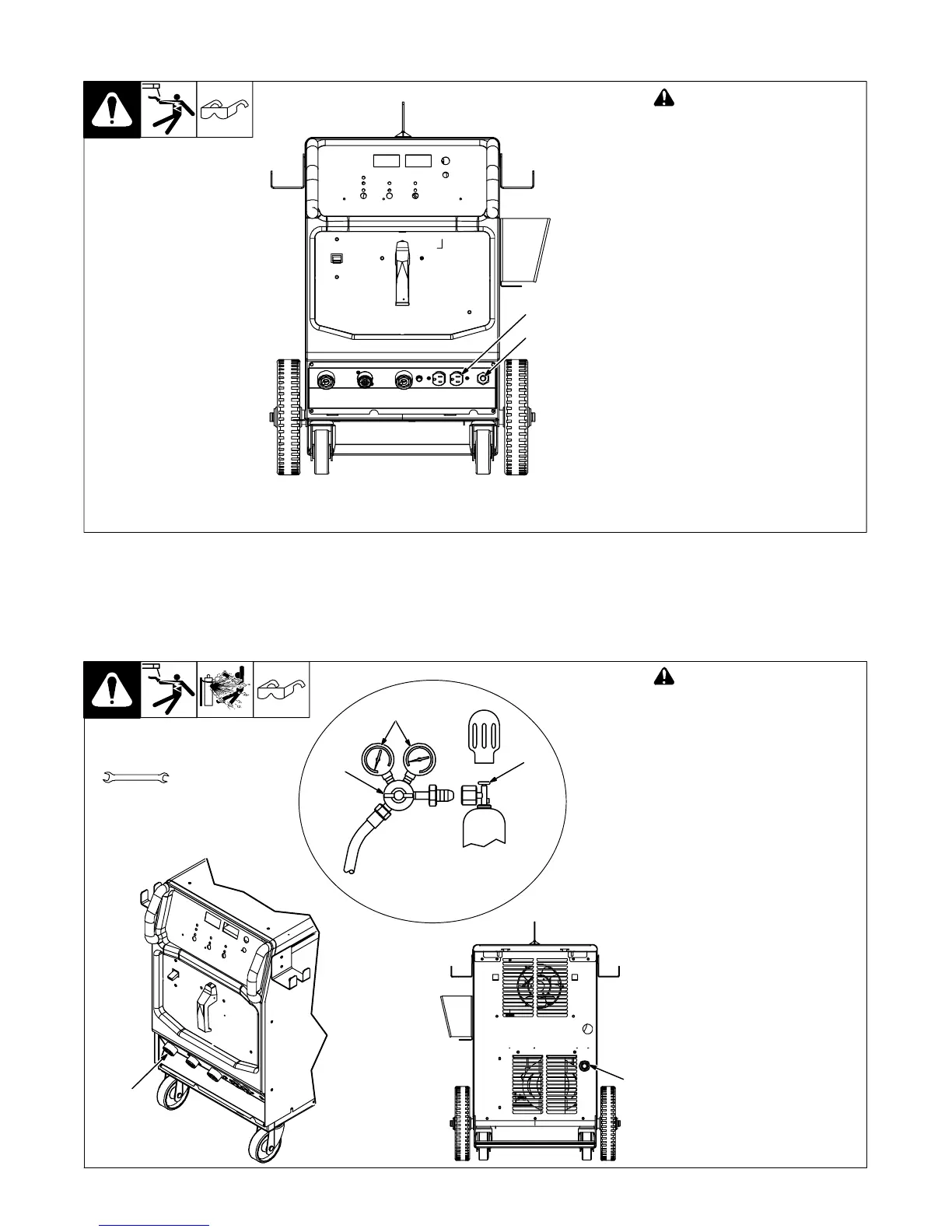

2-11. 115 Volts AC Duplex Receptacle And Supplementary Protector CB1
804 267-C
! Turn Off power before con-
necting to receptacle or re-
setting protector.
1 Supplementary Protector CB1
If CB1 opens, high frequency and
output to the 115 volts ac duplex re-
ceptacle stop. Press button to reset
protector.
2 115 V 15 Amp AC Receptacle
Provides 115 volts, 15 amps of ac
power for equipment such as grind-
ers, drills, coolers, etc.. Receptacle
is protected from overload by sup-
plementary protector CB1.
2
1
2-12. Shielding Gas Connections
804 234-C / 804 235-C
! Turn Off power before con-
necting to receptacle.
1 Gas Valve In Fitting
Fitting has 5/8-18 right-hand
threads.
Located on rear of unit.
2 Gas Valve Out Fitting
Gas connection is integrated into
the Electrode weld output terminal
by means of a flow-through type
connector.
3 Cylinder Valve
Open valve slightly so gas flow
blows dirt from valve. Close valve.
4 Regulator/Flow Gauge
Connect regulator/flow gauge to
gas cylinder.
Connect gas hose to gas in fitting.
5 Flow Adjust
Typical flow rate is 20 cfh (cubic feet
per hour).
5
4
5/8, 1-1/8 in
Tools Needed:
3
1
2
