OM-284794 Page 15
F
Complete Parts List is available at www.MillerWelds.com
4-5. Cooler Specifications
F
The correction factor on the cooling power at an ambient temperature of 104° F ( 40° C) is 0.625.
Recirculating Coolant System For Water-Cooled GTAW Torches And GMAW Guns
Use With Guns/Torches Rated Up To 600 Amperes
Coolant Tank Capacity 3 gal (11.4 L)
Rated Cooling Power 1.42 kW at 1.1 qt/min at 77°F (4,840 BTU/hr at 1 L/min at 25°C)
4-6. Coolant Specifications
Do not use conductive coolant.
Application Coolant
GTAW Or Where High Frequency Current Is Used
Low Conductivity Coolant 043810*
Distilled Or Deionized Water Okay Above 32°F (0°C)
*Coolants 043810 and 043809 protect to -37°F (-38°C) and resist algae growth.
NOTICE – Use of any coolant other than those listed in the table voids the warranty on any parts that come in contact with the coolant (pump, ra-
diator, etc.).

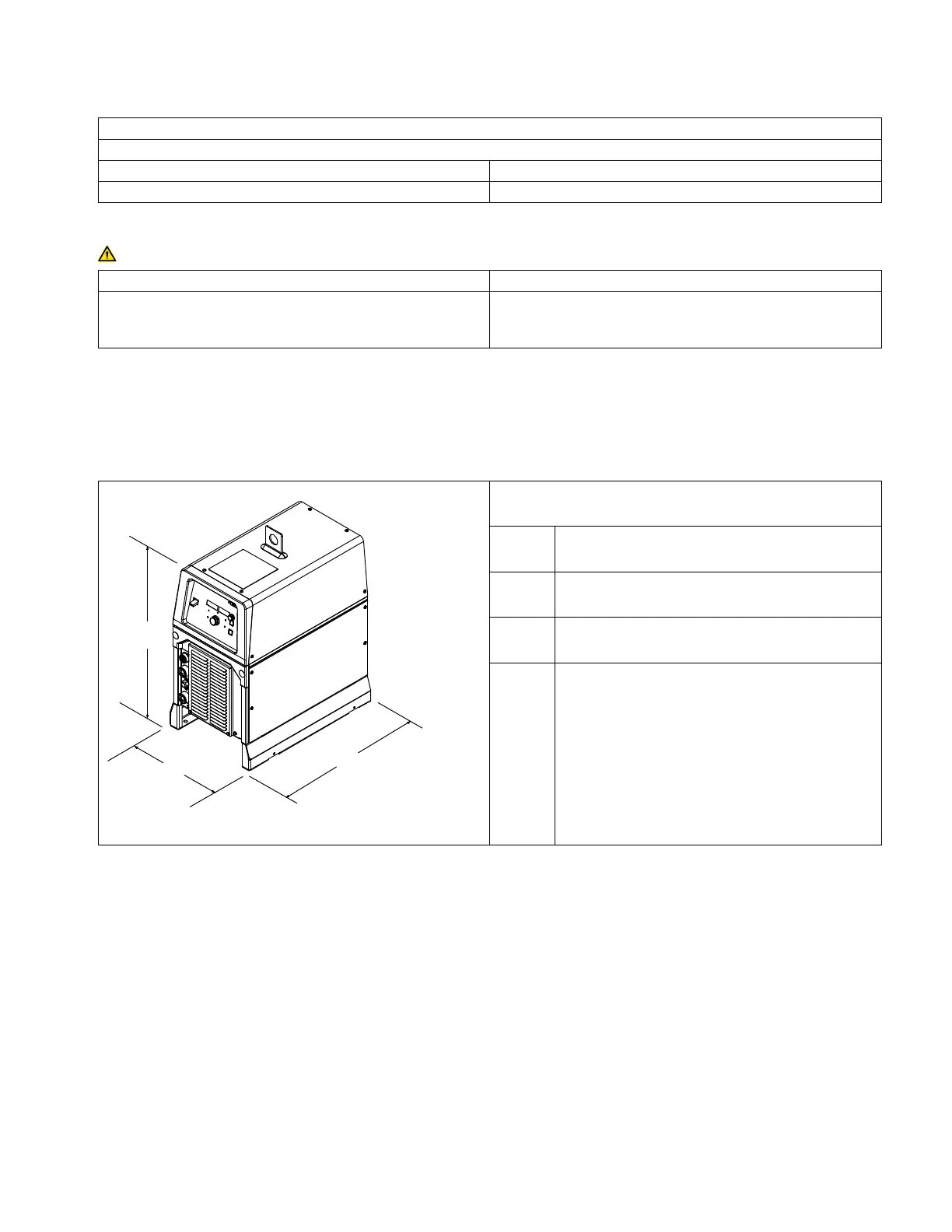

4-7. Dimensions, Weights, And Mounting Options
A. Welding Power Source
Dimensions
A 29-3/8 in. (746 mm)
B 15 in. (381 mm)
C 24-5/8 in. (625 mm)
Weight 101 lb (45.8 kg)
To Next Page
