6-3. Accessing Process Menu: DC TIG And DC TIG Pulse
MENU
PRO-SET
1
2
3
4
280539-B
150A

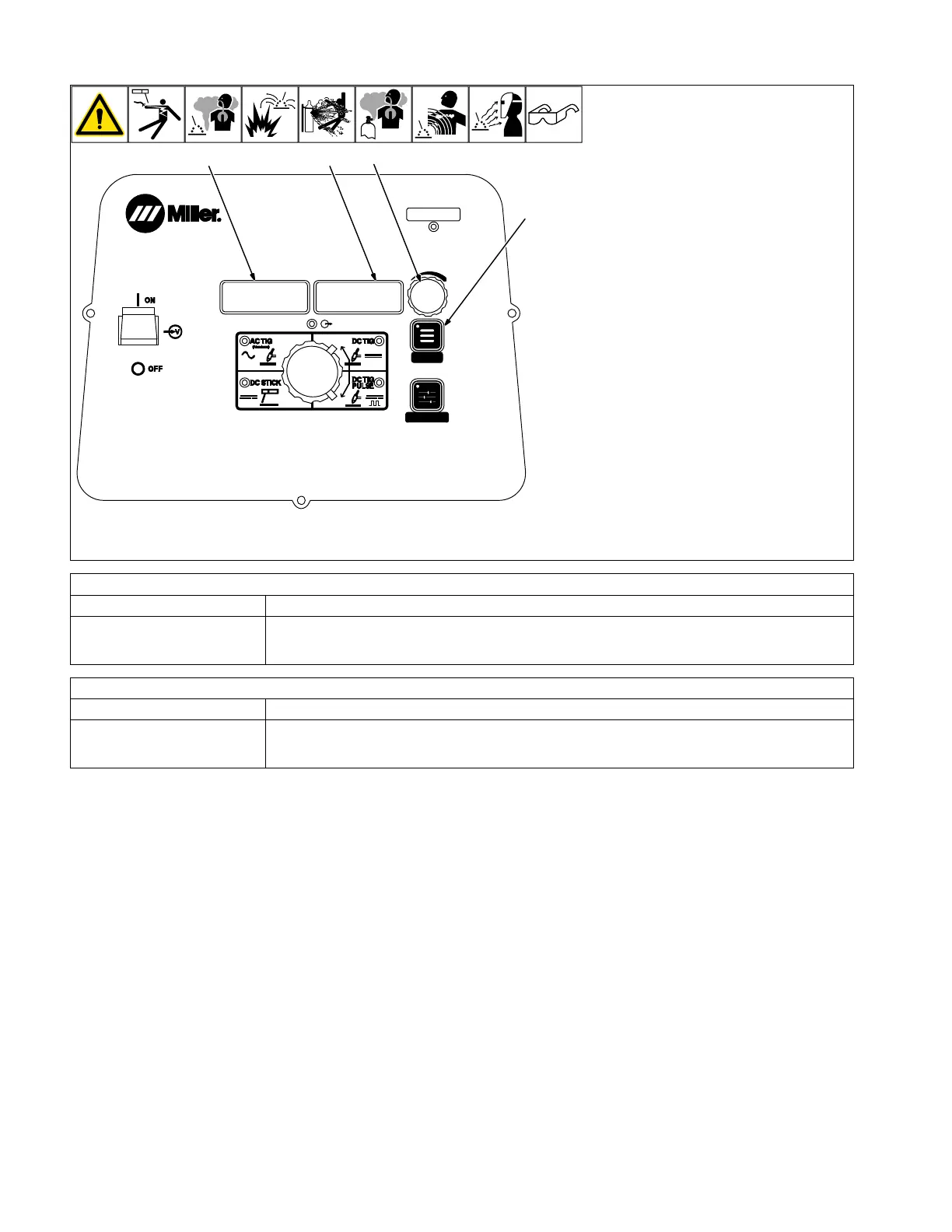

1 Menu Button
Press Menu button to cycle through parame-
ters that can be set.
2 Parameter Display
3 Setting Display
4 Amperage Adjustment Control
Rotate Amperage Adjustment control to ad-
just parameter setting.
F
Parameter automatically returns to am-
perage setting 15 seconds after Amper-
age Adjustment control is inactive.
Amperage Control
Controls the welding amperage output. Limits
the maximum output of a remote amperage
device.
*PRO-SET provides PROfessionally devel-
oped SETtings for the weld process. To use
PRO-SET, press the menu button to display
the parameter and adjust the amperage ad-
justment control until PRO-SET flashes on
the display. PRO-SET flashes one time and
reveals the professional setting for the
parameter.
[PPS]* Pulse Control (DC TIG Pulse Only)
Parameter/Setting Display Description
[PPS] [100] Reduces heat input to minimize distortion and increase travel speed. Set PPS (pulses per second). The
range is 0.1-150 PPS. The Background Amperage and Peak Amperage are not adjustable. Background
Amperage equals 25% of Peak amperage. Peak amperage Time equals 40%.
Post Flow Control
Parameter/Setting Display Description
[POST] [AUTO] Controls the length of time gas flows after welding stops. Range is AUTO, OFF - 50T (seconds). AUTO
calculates the time based on the maximum amperage of each welding cycle. The minimum time is 8 sec-
onds. Auto = maximum amperage/10.
