OM-284794 Page 32

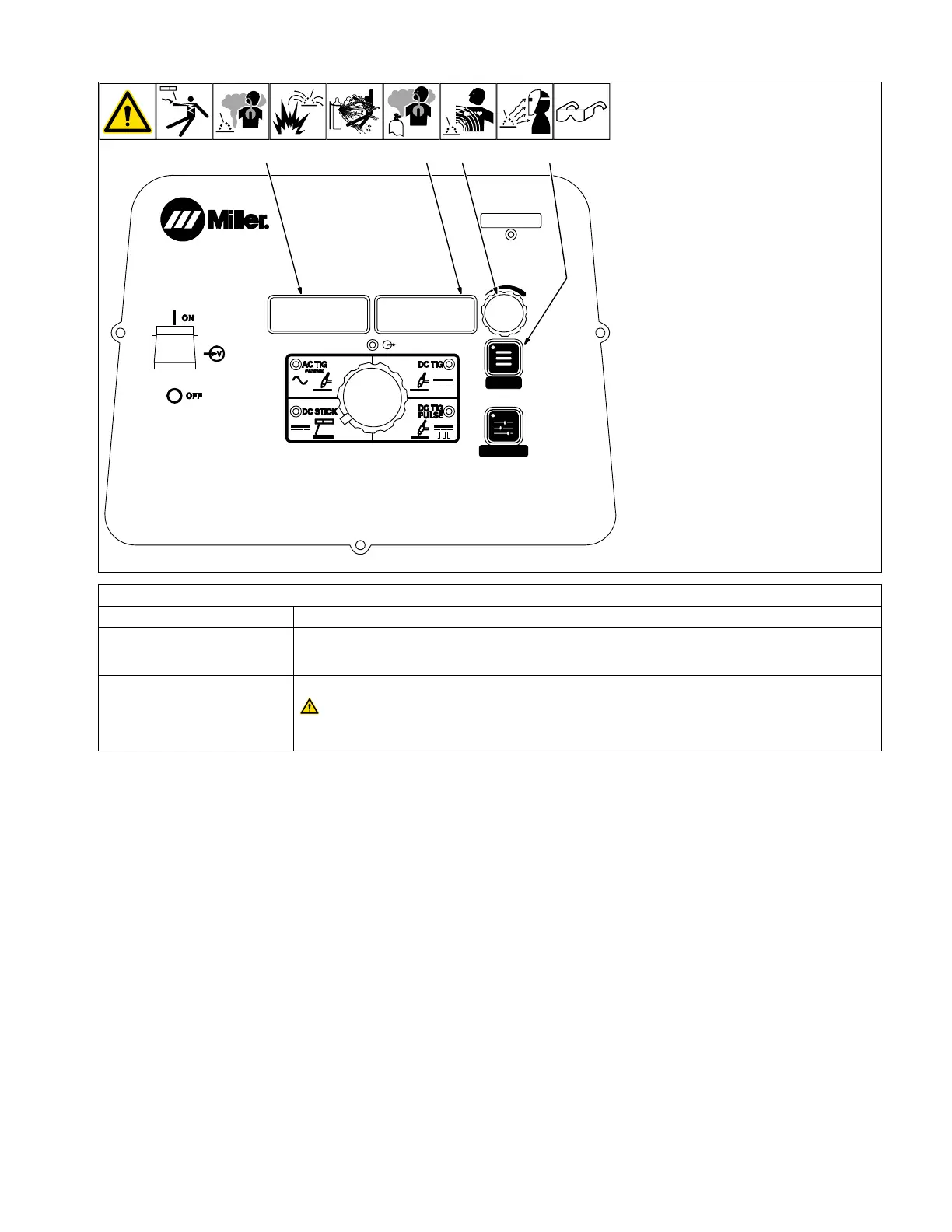

6-6. Accessing User Menu: DC Stick
MENU
PRO-SET
1
MENU
2
3
4
USER
280539-B
1 Menu Button
Press and hold Menu button for approxi-
mately 2 seconds to access machine configu-
ration menus. Use Menu button to cycle
through parameters that can be set.
2 Parameter Display
3 Setting Display
4 Amperage Adjustment Control
Rotate Amperage Adjustment control to ad-
just parameter setting.
F
To exit menu, press and hold Menu but-
ton until Menu Off is displayed.
Trigger Mode Selection
Parameter/Setting Display Description
[RMT] [STD] Typically used with a remote foot or hand control. RMT STD requires a maintained contact closure to ena-
ble weld output. Amperage can be controlled with a remote potentiometer, or it can be set at the control
panel.
[OUT] [ON] Output on.
Weld output terminals are energized at all times when displays read [OUT] [ON].
No remote control or trigger required. Amperage can be controlled at the control panel or with a remote
potentiometer. Blue output on LED illuminates to indicate output is on.
To Next Page
