Functional Tests Installation Guide
2 - 26 046-001141-00 A5/A3™ Service Manual

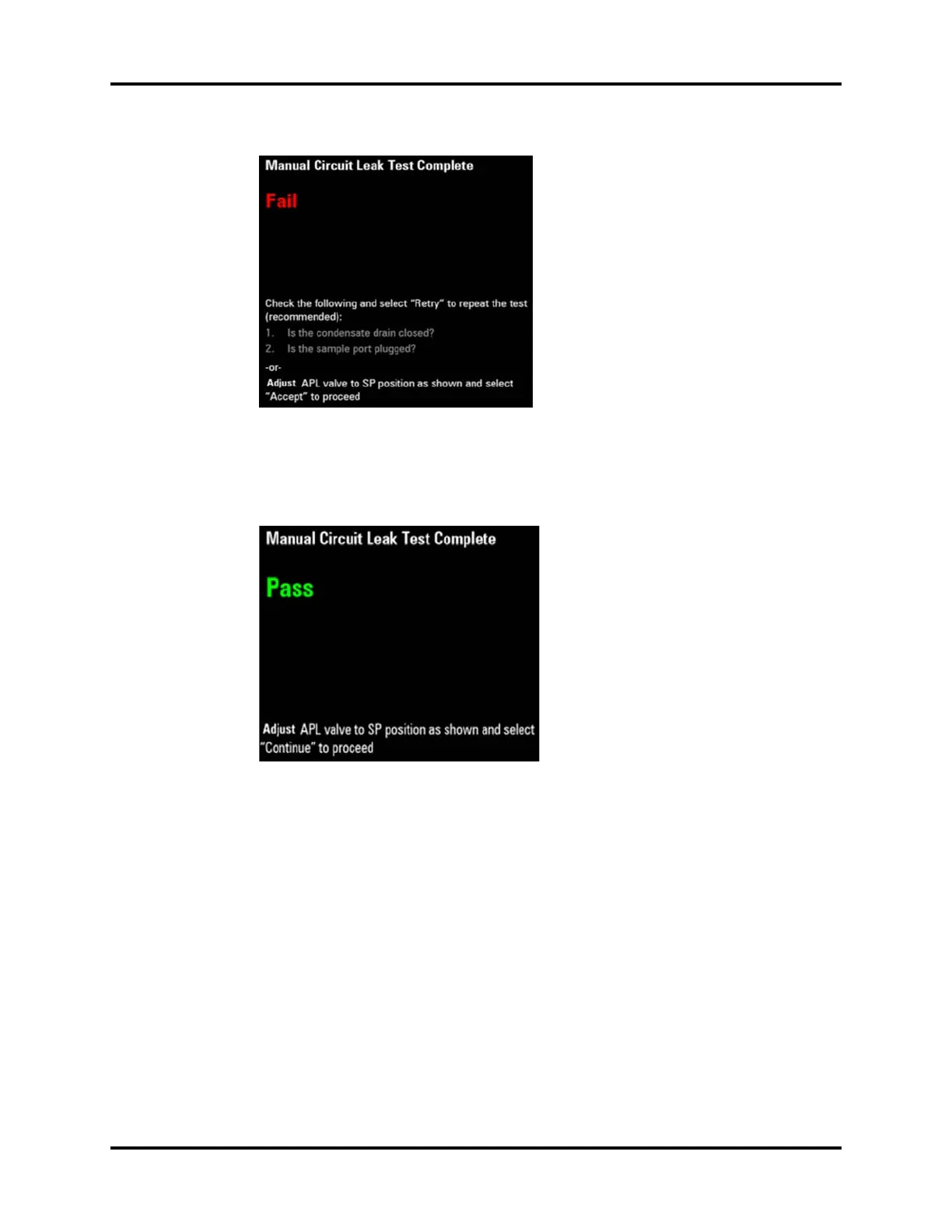

FIGURE 2-36 Manual Circuit Leak Test: Fail
The following screen is displayed if the manual circuit leak test is completed. Select Continue to enter
automatic circuit leak test.
FIGURE 2-37 Manual Circuit Leak Test: Passed
NOTE: If there is a leak, check the pneumatic circuit system for leakage and
troubleshoot the problems as described in 5.3 Pneumatic Circuit
System Problems. Repeat the leak test after the source of the failure has
been resolved.
