Mindray A5 Service Manual

System Calibration Calibration
4 - 10 046-001141-00 A5/A3™ Service Manual
4.3.1.2 100% O2 Calibration
NOTE: 100% O2 calibration must be performed in standby mode.
NOTE: 100% O2 calibration can be performed only after a successful 21% O2
calibration.
Follow these steps to calibrate O2 sensor at 100% O2.
1. Enter Standby.
2. Access the 100% O2 Calibration screen via Setup > System > Calibration >O2 Sensor or Setup >
Service > Calibration > O2 Sensor. The System and Service tabs require passwords and shows
both 21% and 100% O2 Sensor calibration. The calibration screen shown below is displayed

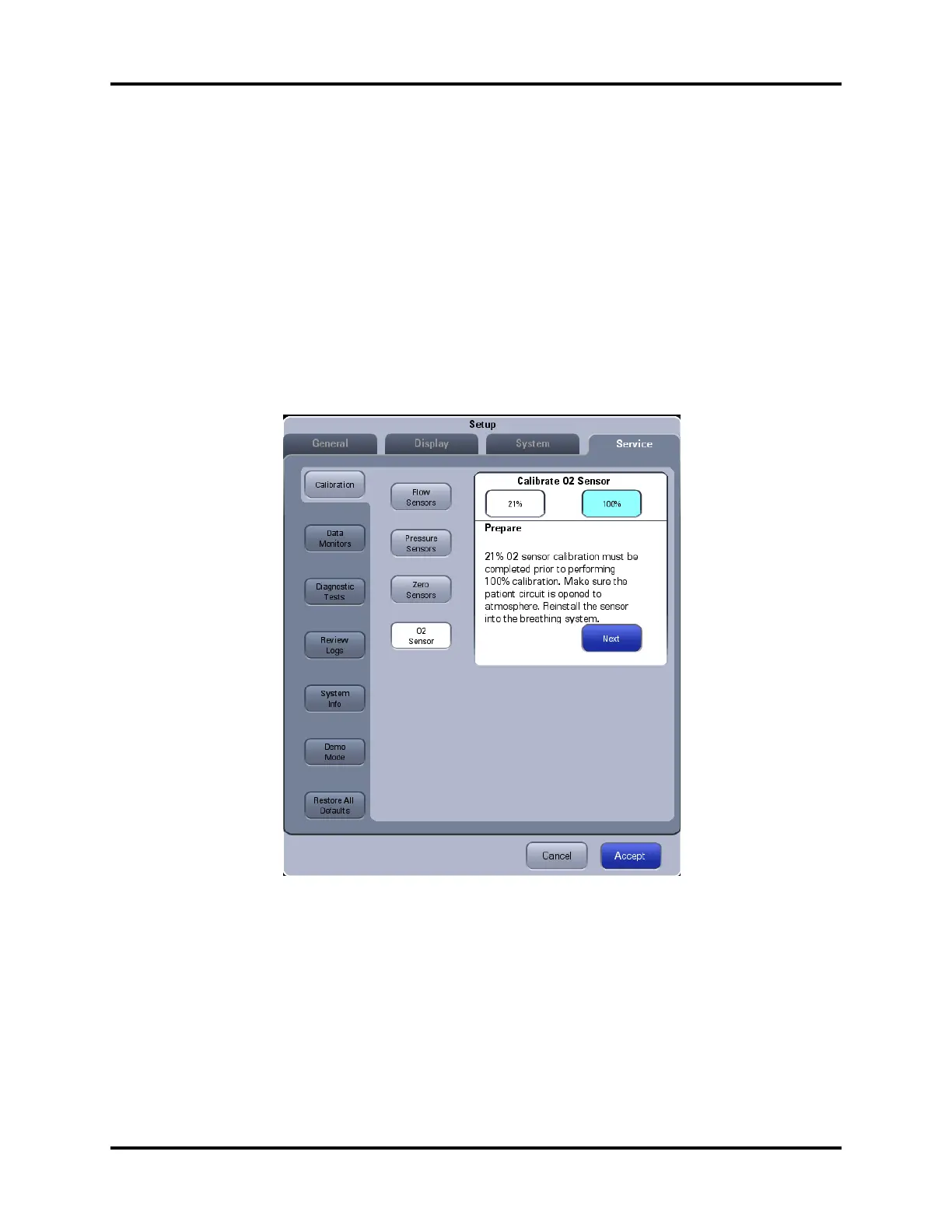

when 100% is selected. Set up the machine as per the instructions on the screen and select
Next. In case of manual mode, make sure that the manual bag is in position. Otherwise, set the
switch to Auto position. .
3. Select Next and the calibration screen as shown below is displayed. Set up the machine as per
the instructions on the screen.
