Mindray A5 Service Manual

A5/A3™ Service Manual 046-001141-00 4 - 11
Calibration System Calibration

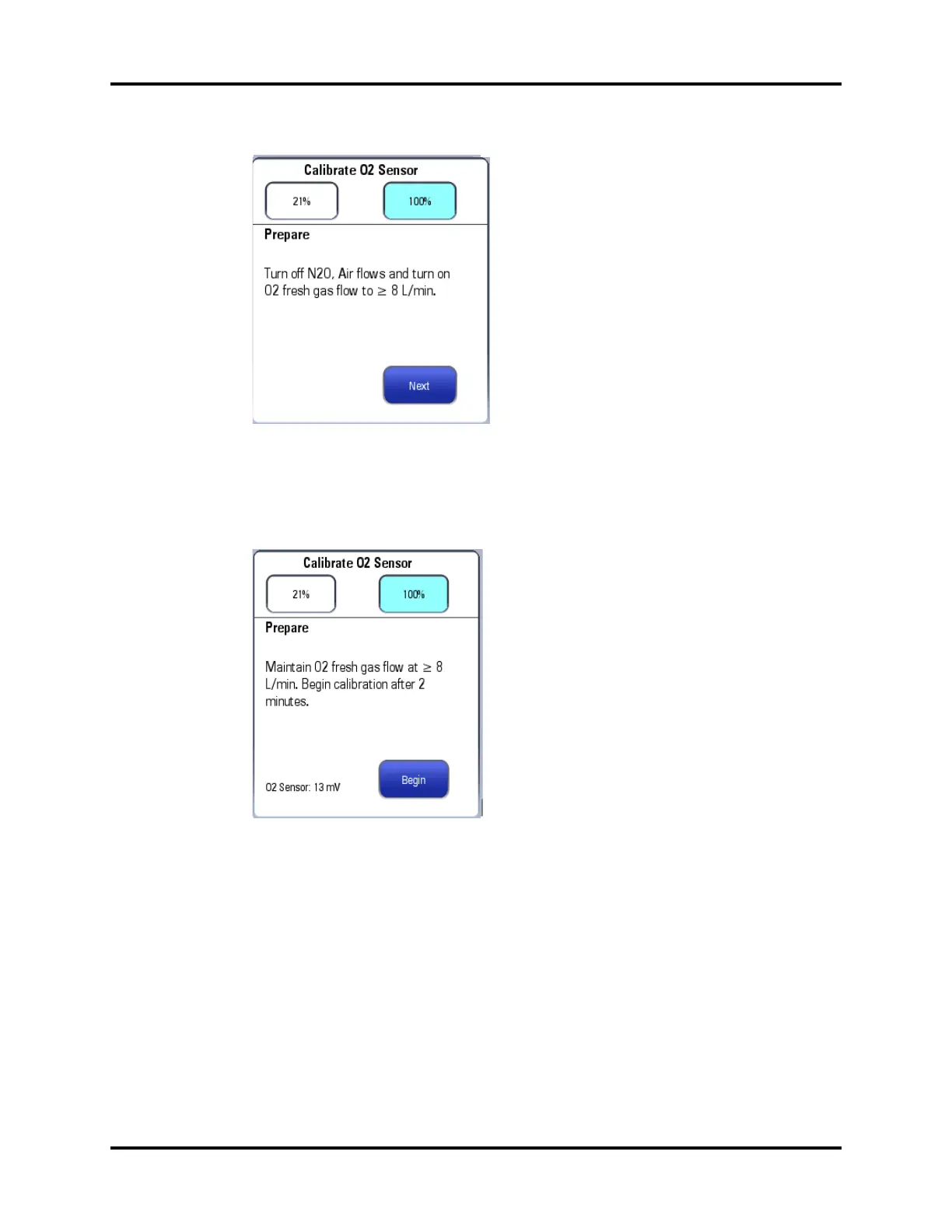

FIGURE 4-5
4. Select Next and the calibration screen as shown below is displayed. Set up the machine as per
the instructions on the screen. Wait at least 2 minutes and ensure that O2 cell voltage has
stabilized at the maximum value for at least 30s. Select Begin.
FIGURE 4-6
5. The calibration screen shown below is displayed when Begin is selected. During the calibration,
you can select Cancel to cancel the calibration.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
