Mindray A5 - Page 206

System Calibration Calibration
4 - 20 046-001141-00 A5/A3™ Service Manual

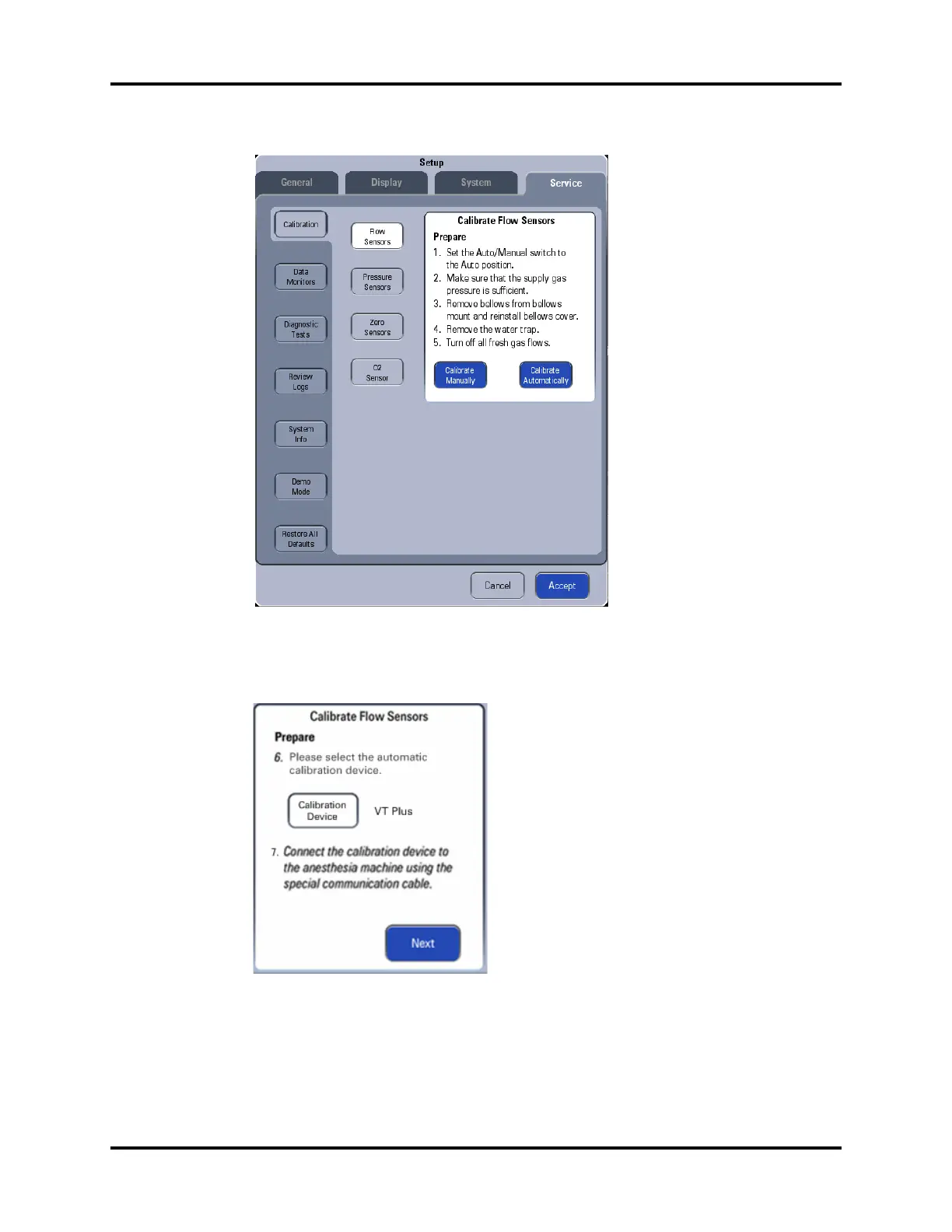

FIGURE 4-17
3. Select Calibrate Automatically button to open the menu shown below. Then select the desired
calibration device.
FIGURE 4-18
4. Connect the calibration device with the anesthesia machine using a communication cable (P/N:
801-0631-00121-00).
