Mindray A5 Service Manual

A5/A3™ Service Manual 046-001141-00 4 - 21
Calibration System Calibration

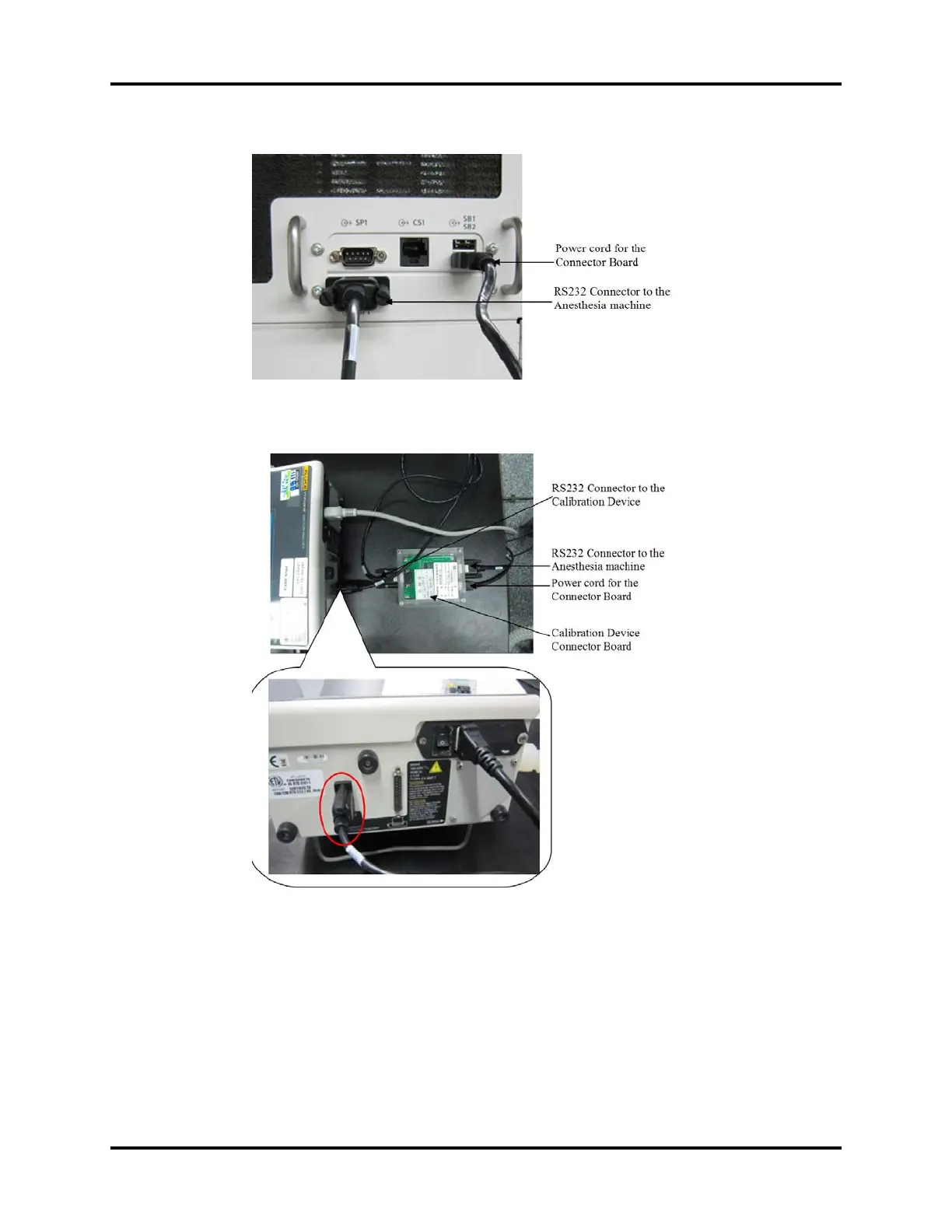

FIGURE 4-19 Cable connections at the anesthesia machine end
FIGURE 4-20 Cable connections at the calibration device (VT Plus) end
5. Set up the calibration device as described below.
To set the VT-Plus:
a. Gas Settings: Press the Setup button, select Setting->ENTER->Gas Settings->MODIFY->Gas
Type->O2->BACK->BACK.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
