Mindray A5 Service Manual

System Calibration Calibration
4 - 44 046-001141-00 A5/A3™ Service Manual

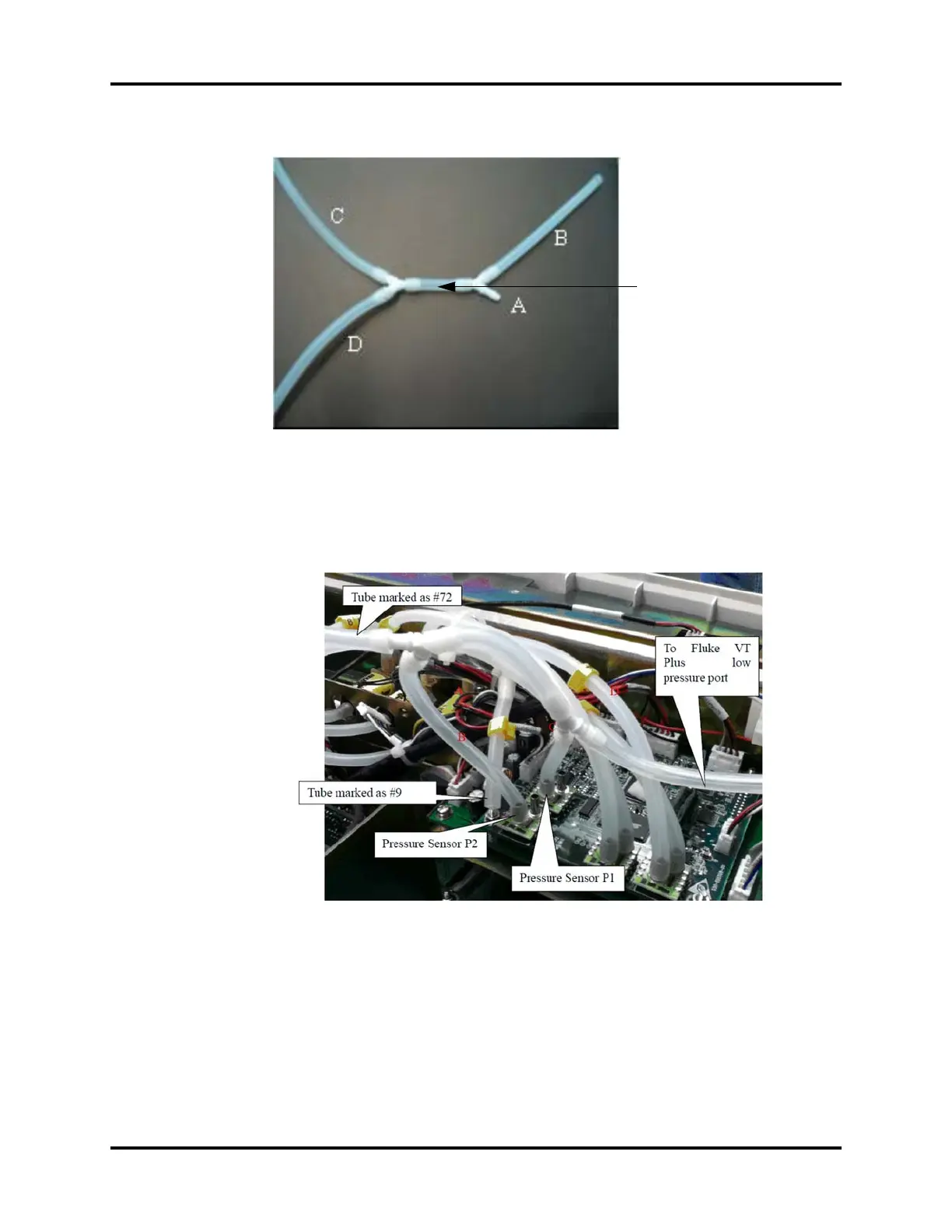

a. Remove the two tubes marked as #72 and #9 from the pressure sensors (refer to the figure
below).
b. Connect the four way tube to the pressure sensor P1 of monitor board, pressure sensor P2 of
PEEP, the tube marked as #72, and the low pressure port of Fluke VT-Plus. The tube marked
as #9 will remain unconnected for this calibration.
FIGURE 4-51
Four-way device connecting the
sampling lines for pressure
calibration

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
