Mindray A5 Service Manual

A5/A3™ Service Manual 046-001141-00 4 - 45
Calibration System Calibration

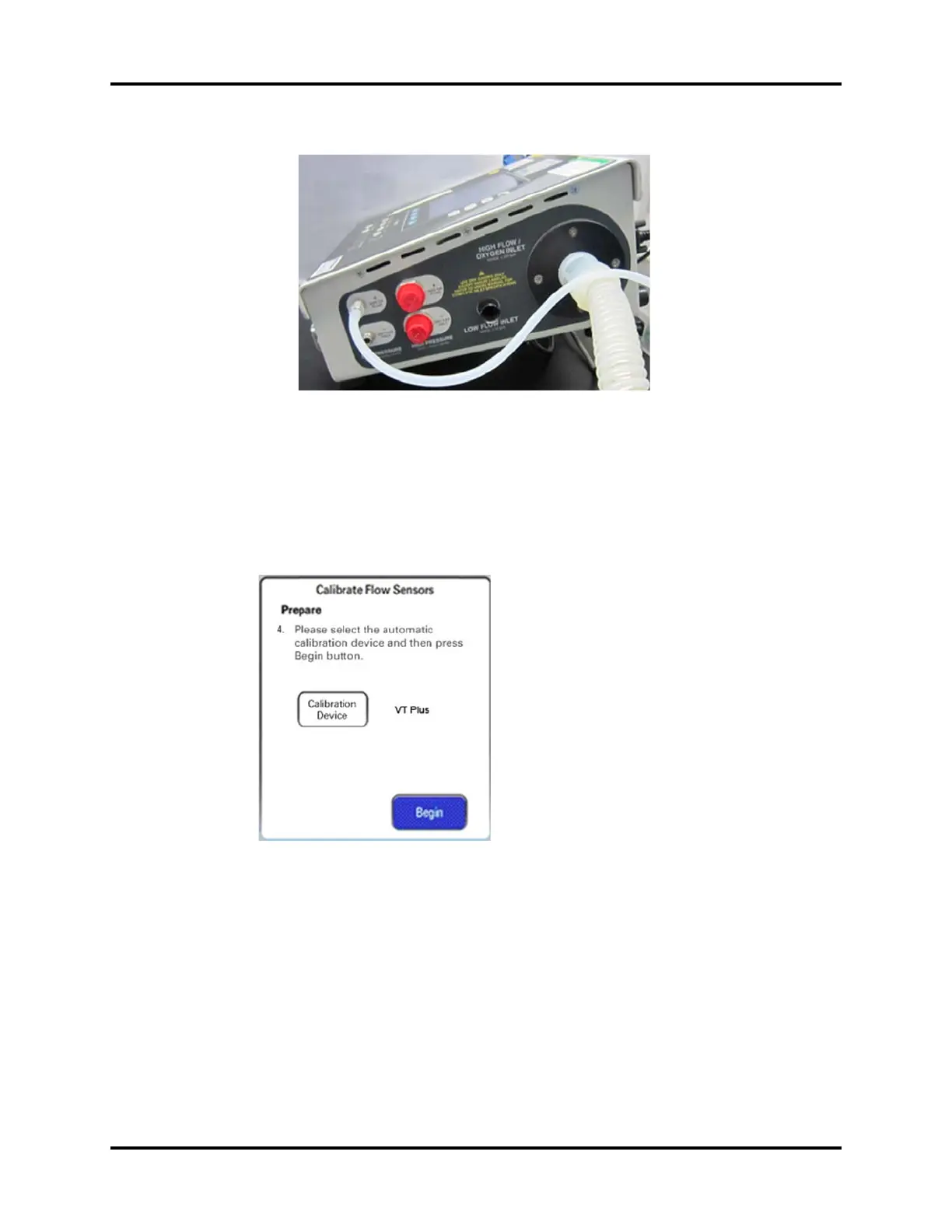

FIGURE 4-52 Pneumatic connections with the calibration device (VT-Plus)
6. Let the anesthesia machine calibration device be powered and manually zero the calibration
device first.
7. Set up the calibration device.
Refer to step 5. of ‘‘Auto Calibration’’ on page 4-19
8. Press the Next button to open the menu shown below.
FIGURE 4-53
9. After selecting the desired auto calibration device, select Begin to access the calibration screen
shown below. During the calibration, you can select Cancel to stop the calibration.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
