Mindray A5 Service Manual

System Calibration Calibration
4 - 46 046-001141-00 A5/A3™ Service Manual

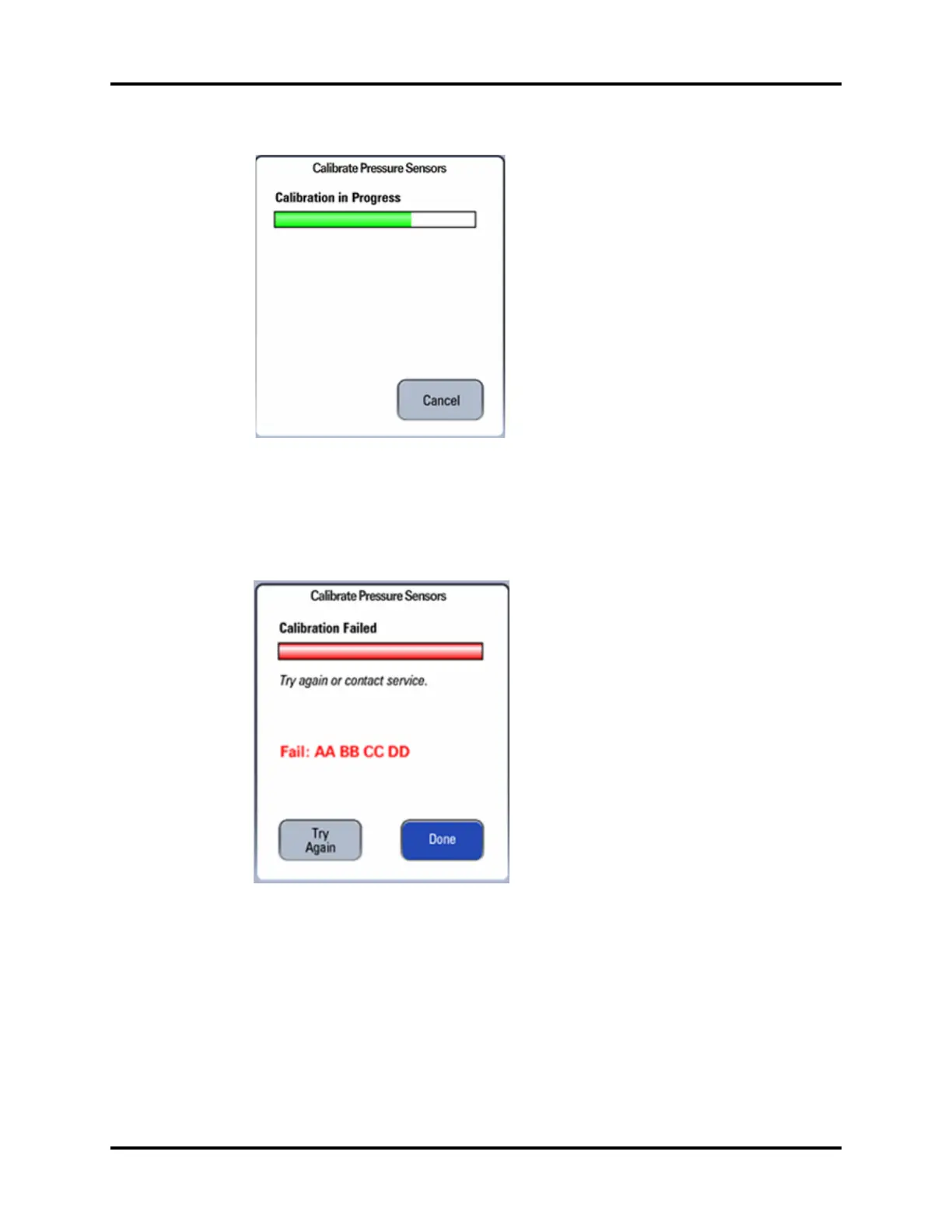

FIGURE 4-54
10. The screens shown below are displayed after the calibration is completed.
• The screen shown below is displayed if the pressure sensor calibration has failed. Select Try
Again to do the calibration again.Select Done to exit the calibration screen.
FIGURE 4-55
• The screen shown below is displayed after a successful pressure sensor calibration. Select
Done to exit the calibration screen.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
