A5/A3™ Service Manual 046-001141-00 4 - 47
Calibration System Calibration

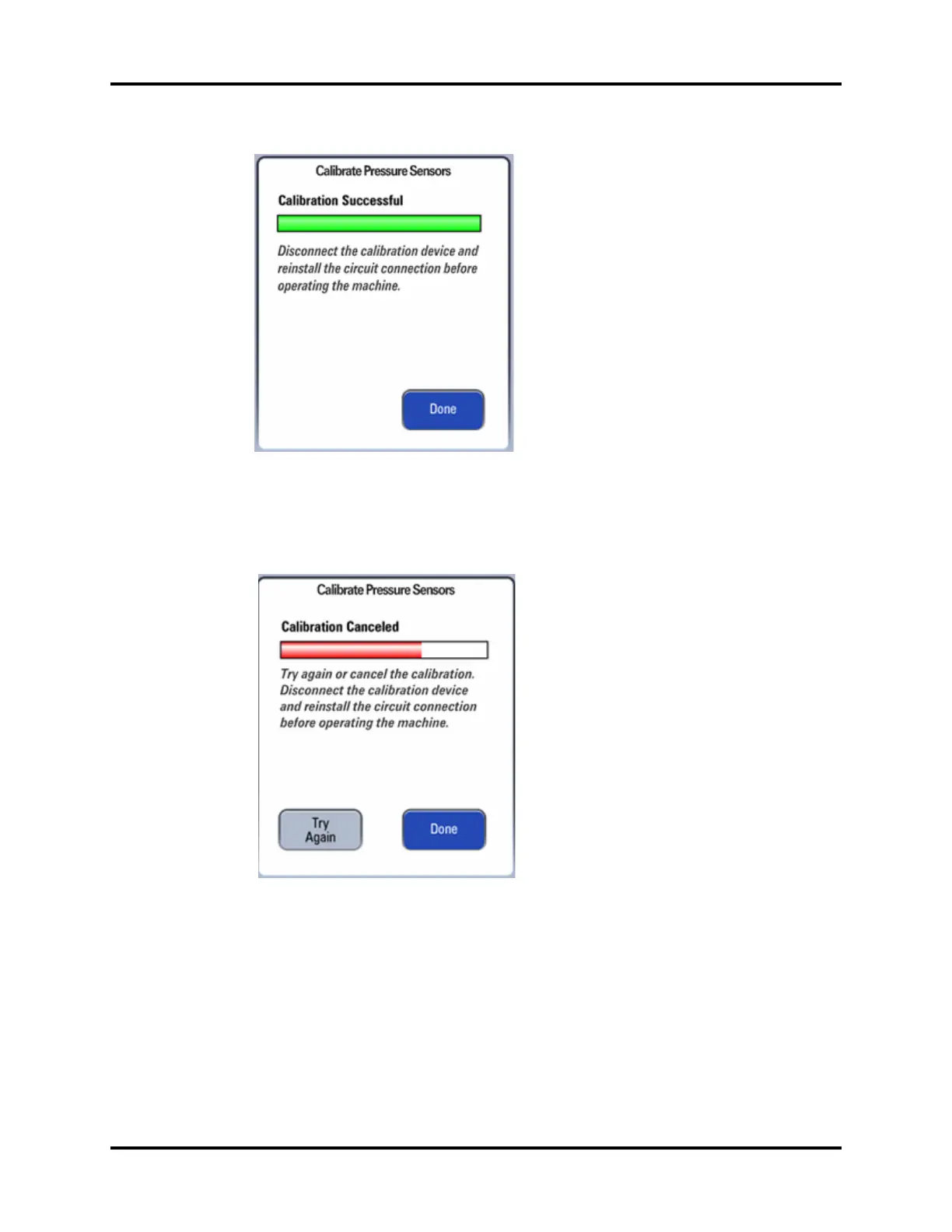

FIGURE 4-56
11. The screen shown below is displayed if the ongoing calibration is canceled. Select Try Again to
do the calibration again. Select Done to exit the calibration screen.
FIGURE 4-57
4.3.4.1.2 Manual Calibration
NOTE: Manual calibration is available in software version 01.03.00 and higher.
Follow these steps to calibrate pressure sensors and the PEEP valve.
1. Make sure that the anesthesia machine is in standby mode.
2. Select Setup-> Service-> Calibration-> Pressure Sensors to access the screen shown below.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
