Mindray A5 Service Manual

System Calibration Calibration
4 - 58 046-001141-00 A5/A3™ Service Manual

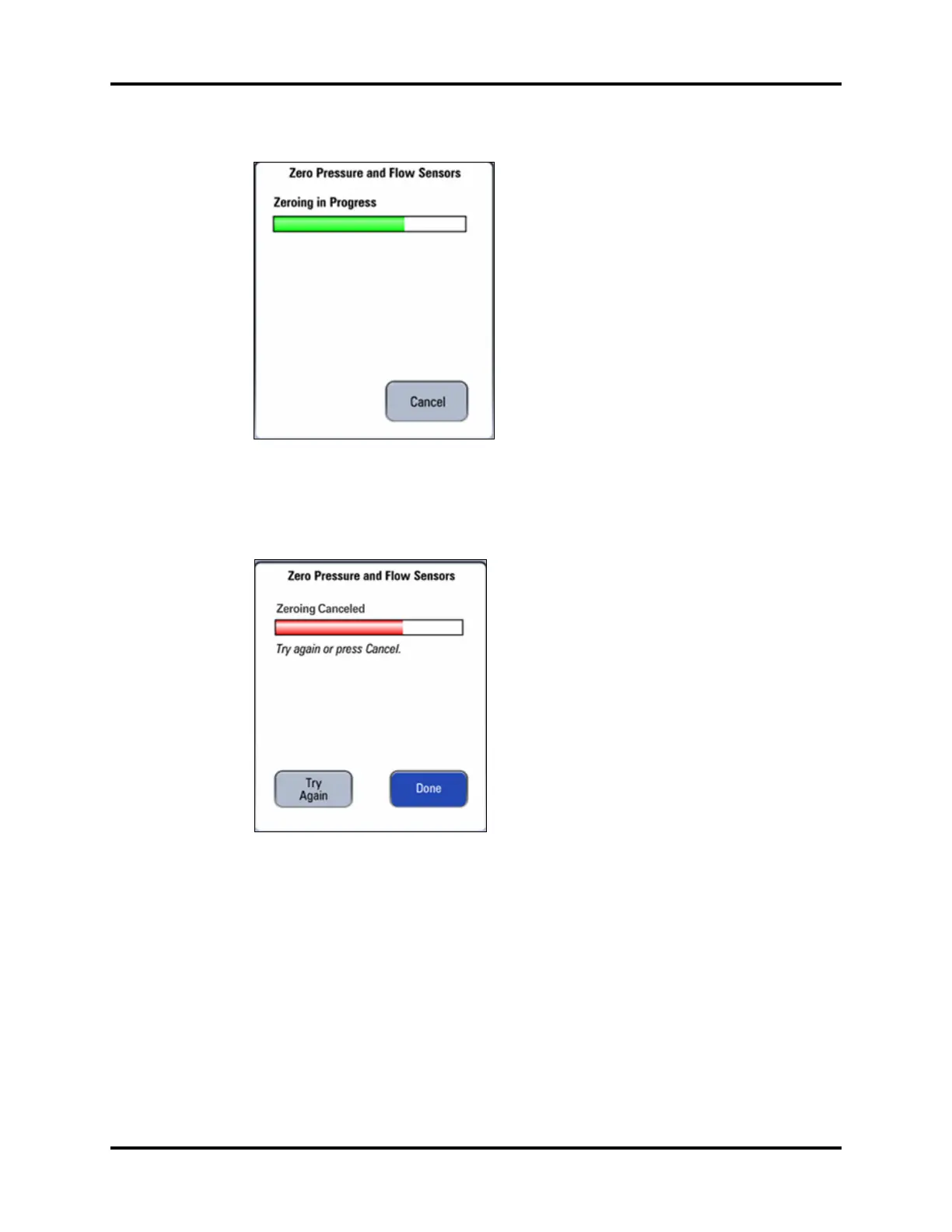

FIGURE 4-70
3. The screen shown below is displayed if the ongoing zeroing is canceled. Select Try Again to do
the zeroing again.Select Done to exit the zeroing screen.
FIGURE 4-71
4. The screen shown below is displayed if the zeroing has failed. Select Try Again to do the zeroing
again.Select Done to exit the zeroing screen.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
