A5/A3™ Service Manual 046-001141-00 4 - 59
Calibration System Calibration

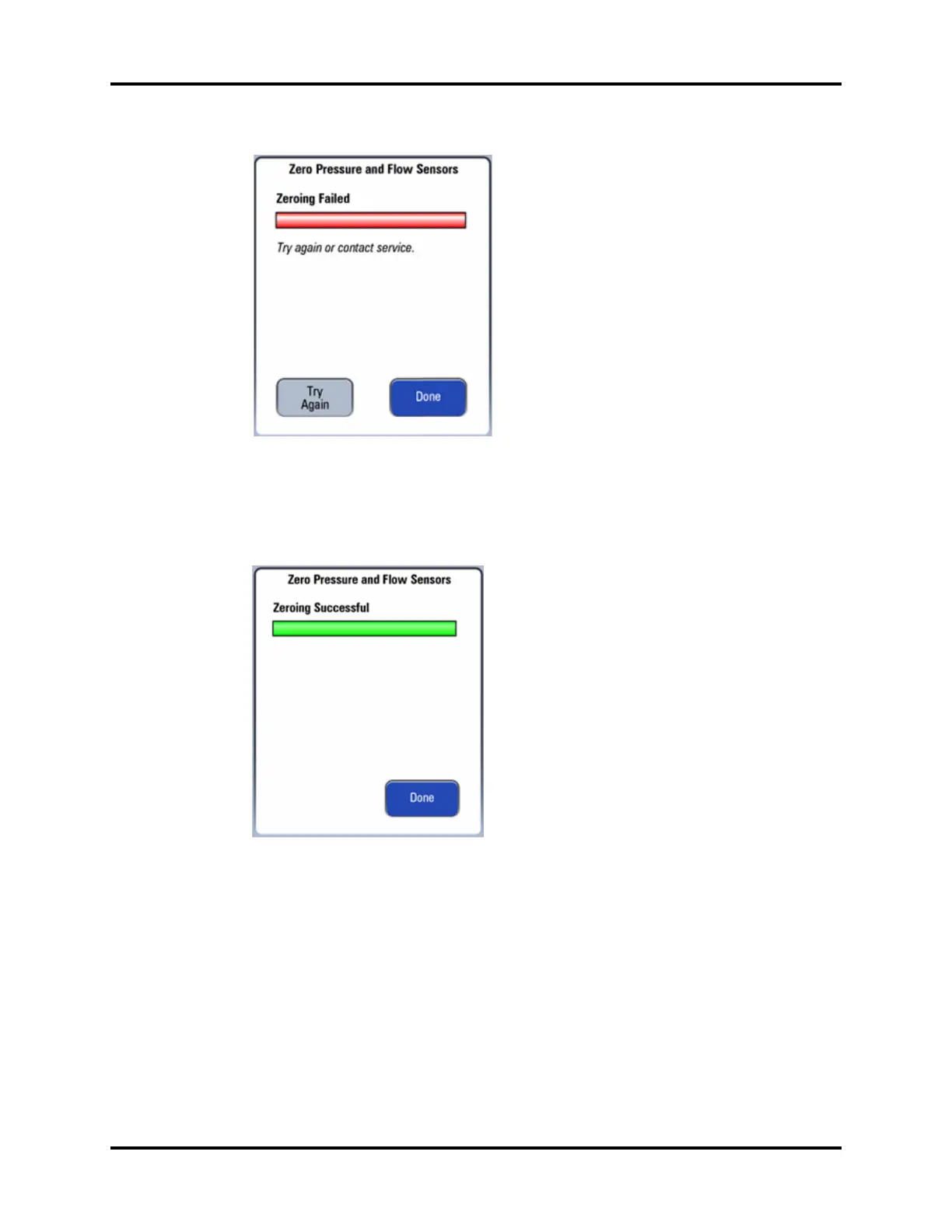

FIGURE 4-72
5. The screen shown below is displayed after a successful zeroing. Select Done to exit the zeroing
screen.
FIGURE 4-73
NOTE: In case of zeroing failure, other faults may exist. You must isolate and
eliminate the problem.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
