Mindray A5 Service Manual

Pneumatic Circuit System Problems Repair and Troubleshooting
5 - 54 046-001141-00 A5/A3™ Service Manual

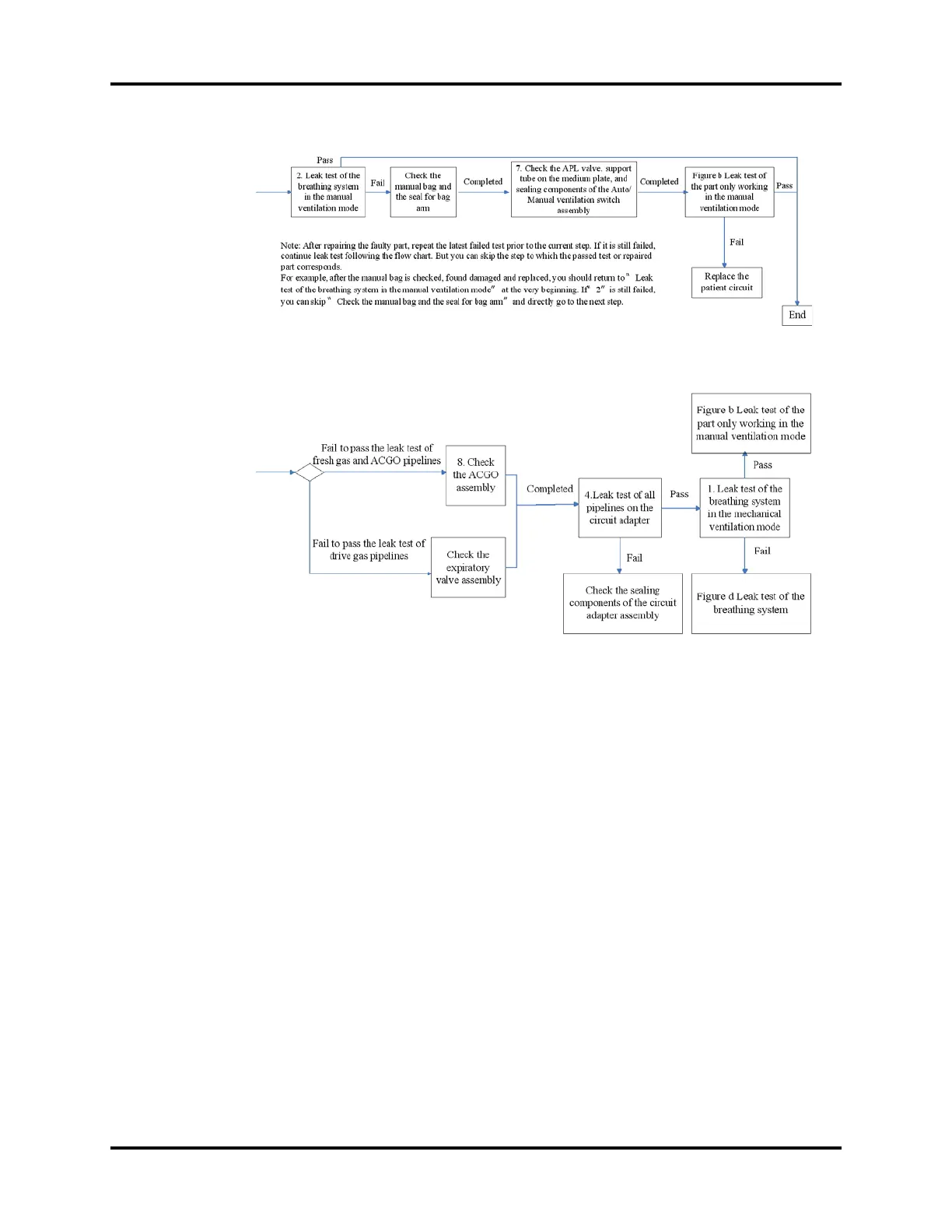

FIGURE 5-56 Leak test of the part only working in the manual ventilation mode
FIGURE 5-57 Leak test of the pipelines inside the main unit

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
