Mindray A5 Service Manual

Disassemble the Assemblies Repair and Disassembly
6 - 16 046-001141-00 A5/A3™ Service Manual
Remove the Fan
1. Remove the rear panel of hardware box.
2. Unscrew the four screws on the fan to remove the fan.

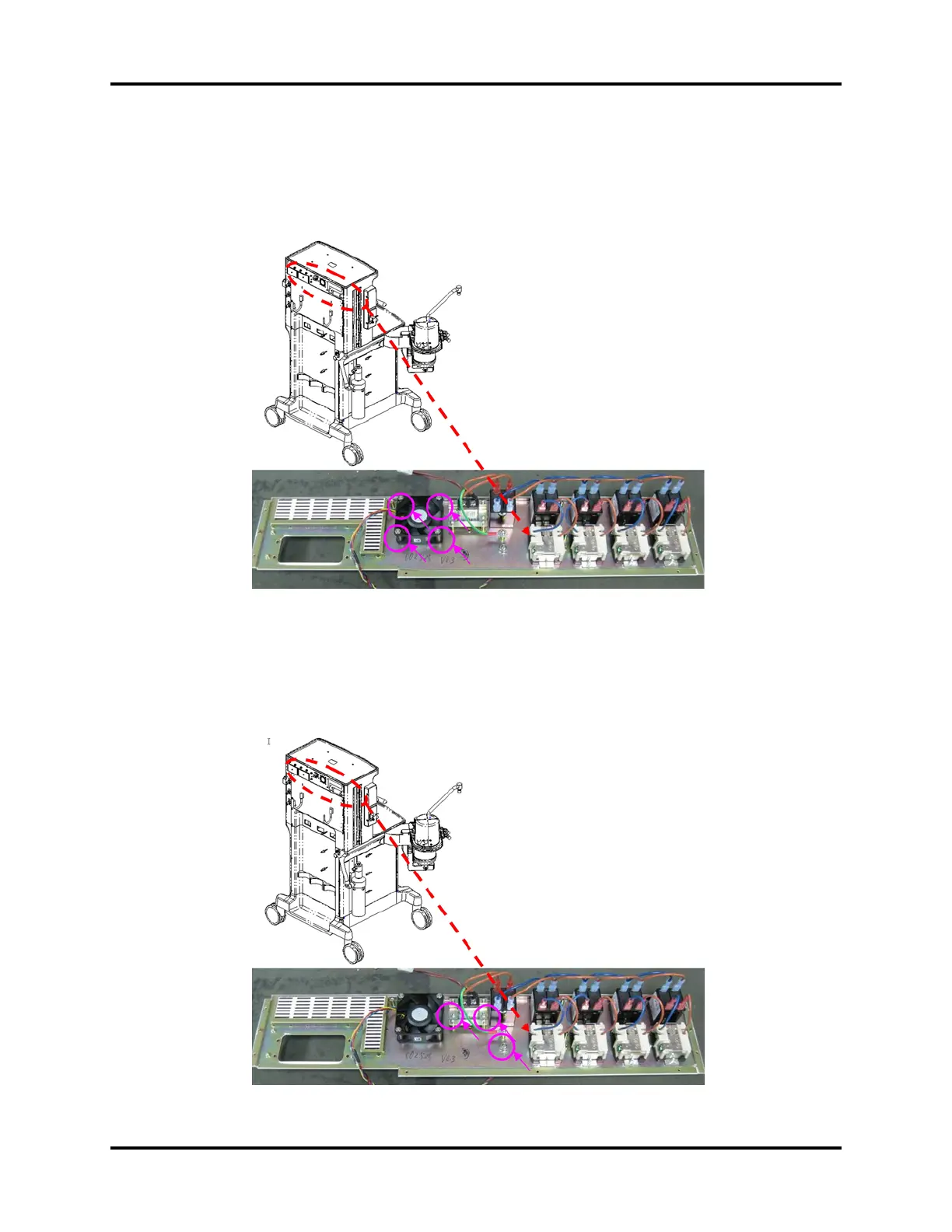

FIGURE 6-29
Remove the Filter
1. Remove the rear panel assembly of hardware box.
2. Unscrew the five screws on the filter to remove the filter.
FIGURE 6-30

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
