Mindray A5 Service Manual

A5/A3™ Service Manual 046-001141-00 6 - 31
Repair and Disassembly Disassemble the Assemblies

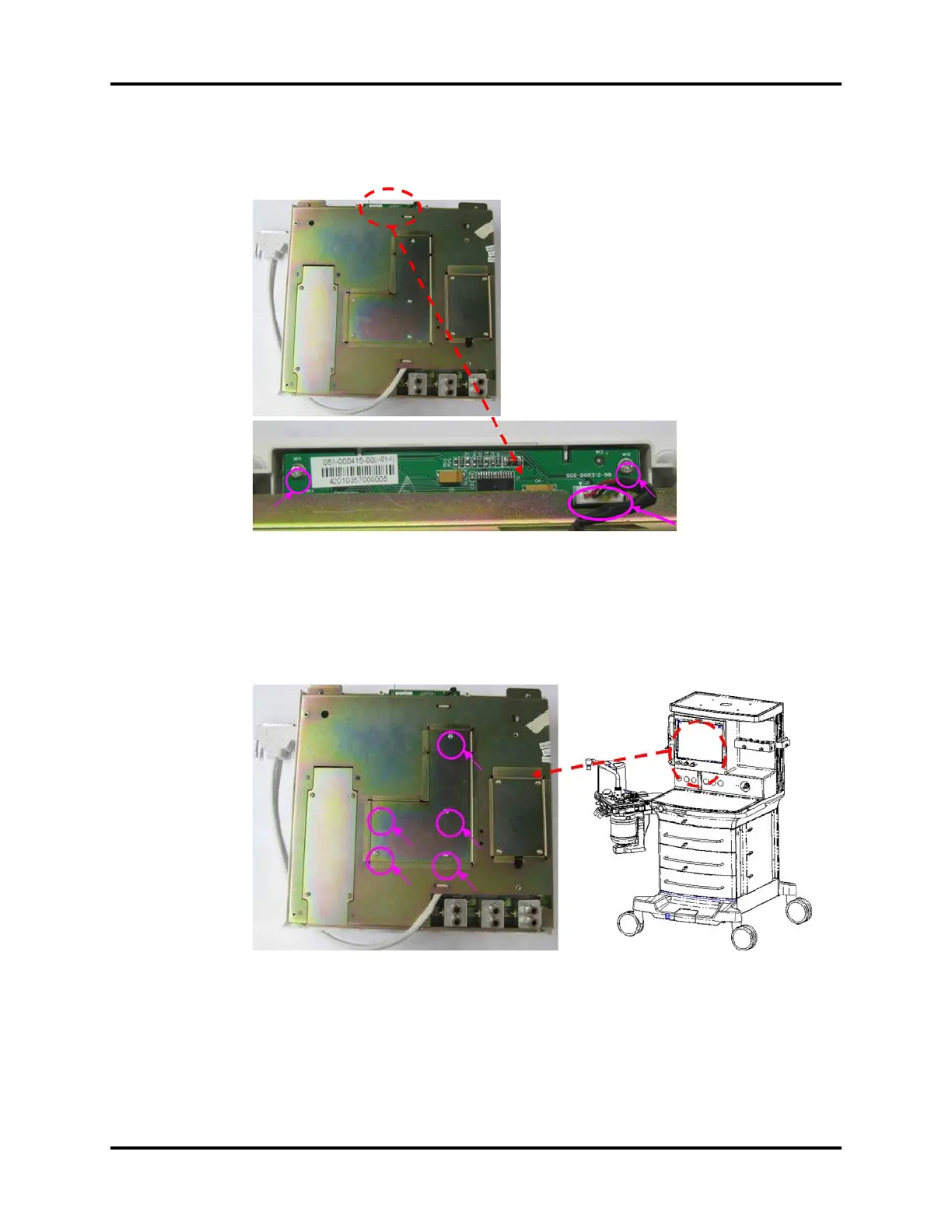

3. Remove the two mounting screws on the alarm lamp board to remove the board.
FIGURE 6-55
6.2.4.2 Remove the Display Adaptation Board
1. Remove display assembly and refer to “Disassemble the Display” on page 6-29..
2. Unscrew the five screws on the cover plate of the display mount.
FIGURE 6-56
3. Unplug the related cables from the display interface board.
4. Remove the four screws on the display interface board and remove the board.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
