Disassemble the Assemblies Repair and Disassembly
6 - 34 046-001141-00 A5/A3™ Service Manual

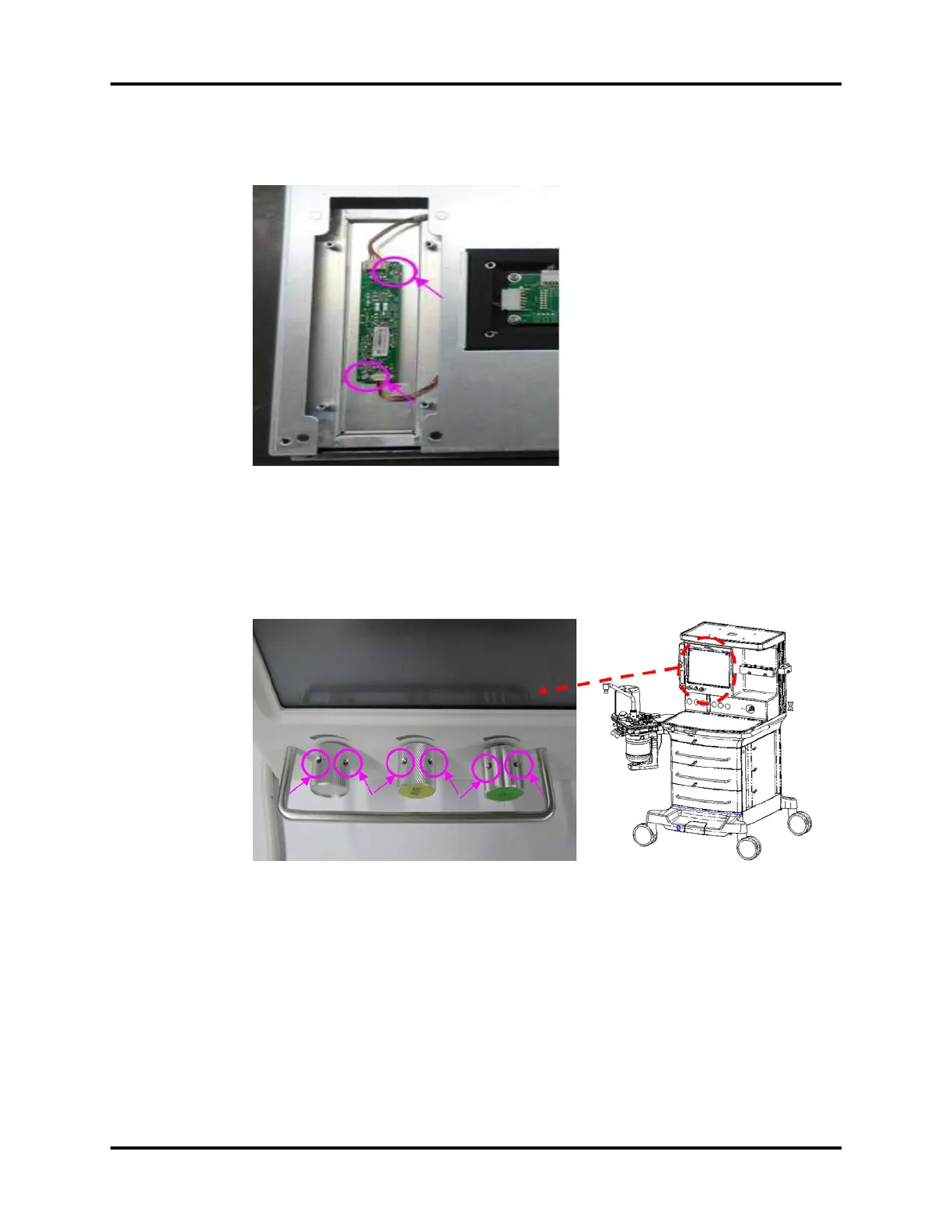

4. Remove the two screws on the backlight inverter board to remove the board.
FIGURE 6-61
6.2.4.5 Remove the Needle Valve Assemblies
1. Remove display assembly and refer to “Disassemble the Display” on page 6-29..
2. Loosen the two Allen set screws on the knob of needle valve to remove the knob.
FIGURE 6-62

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
