A5/A3™ Service Manual 046-001141-00 6 - 33
Repair and Disassembly Disassemble the Assemblies

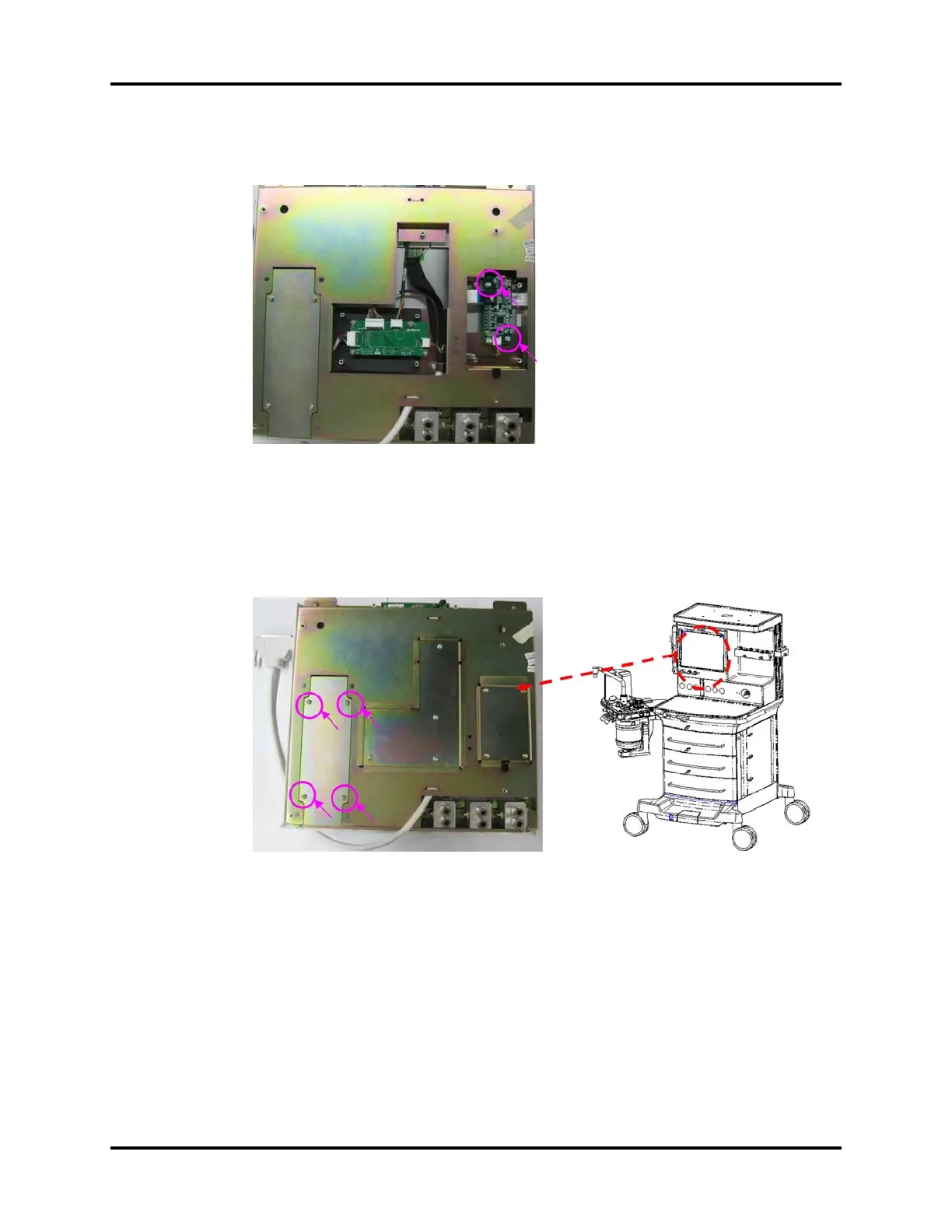

4. Remove the two screws on the touch screen control board to remove the board.
FIGURE 6-59
6.2.4.4 Remove the Backlight Inverter Board
1. Remove display assembly.
2. Remove the four screws and the cover plate of the backlight inverter board.
FIGURE 6-60
3. Unplug the related cables from the backlight inverter board.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
