Mindray A5 Service Manual

A5/A3™ Service Manual 046-001141-00 6 - 45
Repair and Disassembly Disassemble the Assemblies

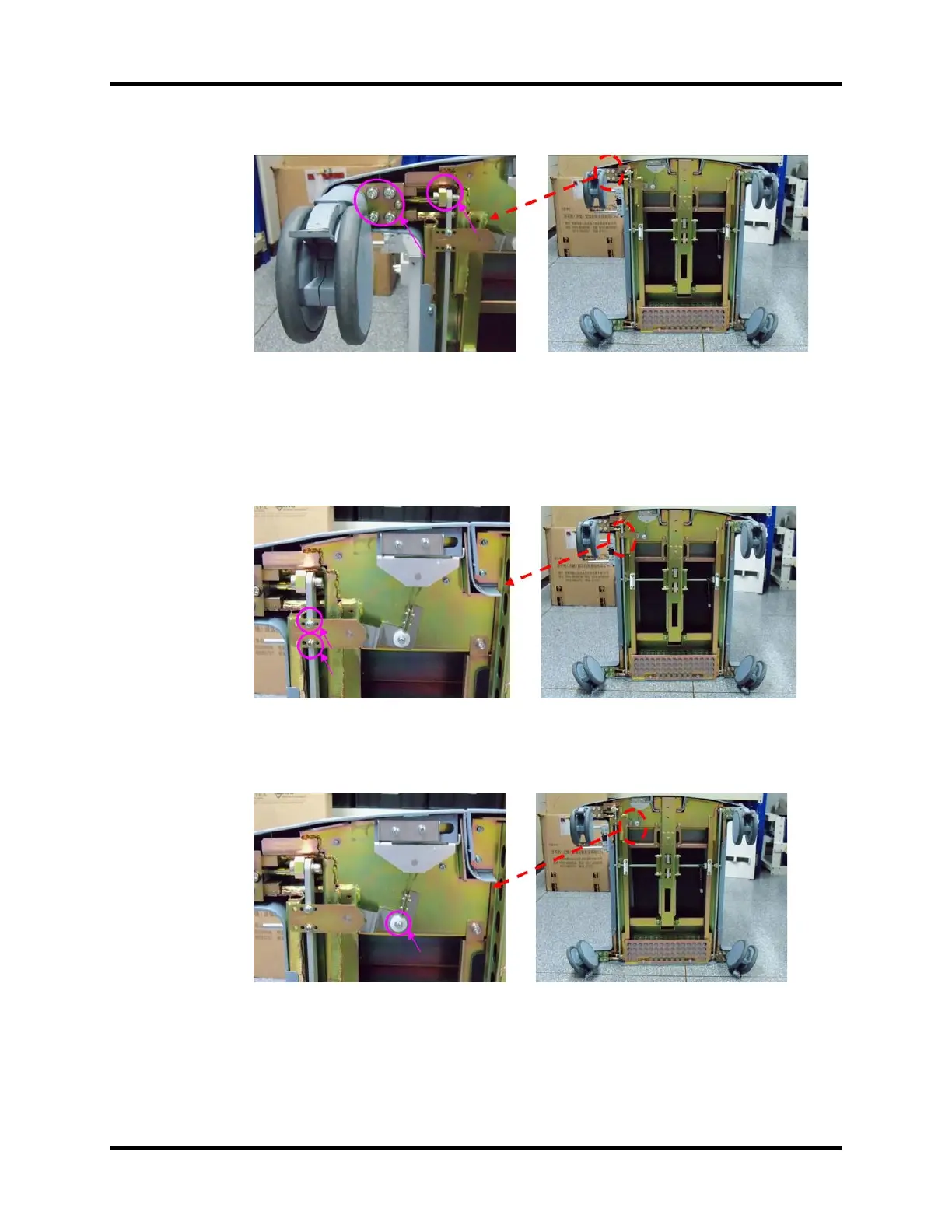

FIGURE 6-84
6.2.11.2 Remove the Brake Indicator Drive Plate I and II (A5 Only)
1. Tilt A5/A3 backward.
2. Unscrew the two screws on the brake indicator drive plate I to remove the plate.
FIGURE 6-85
3. Unscrew the one screw on the brake indicator drive plate II to remove the plate.
FIGURE 6-86
6.2.11.3 Remove the Brake Assembly (A5 Only)
1. Tilt A5/A3 backward.
2. Remove the six screws on the brake assembly to remove the assembly.
