Mindray A5 Service Manual

Disassemble the Assemblies Repair and Disassembly
6 - 46 046-001141-00 A5/A3™ Service Manual

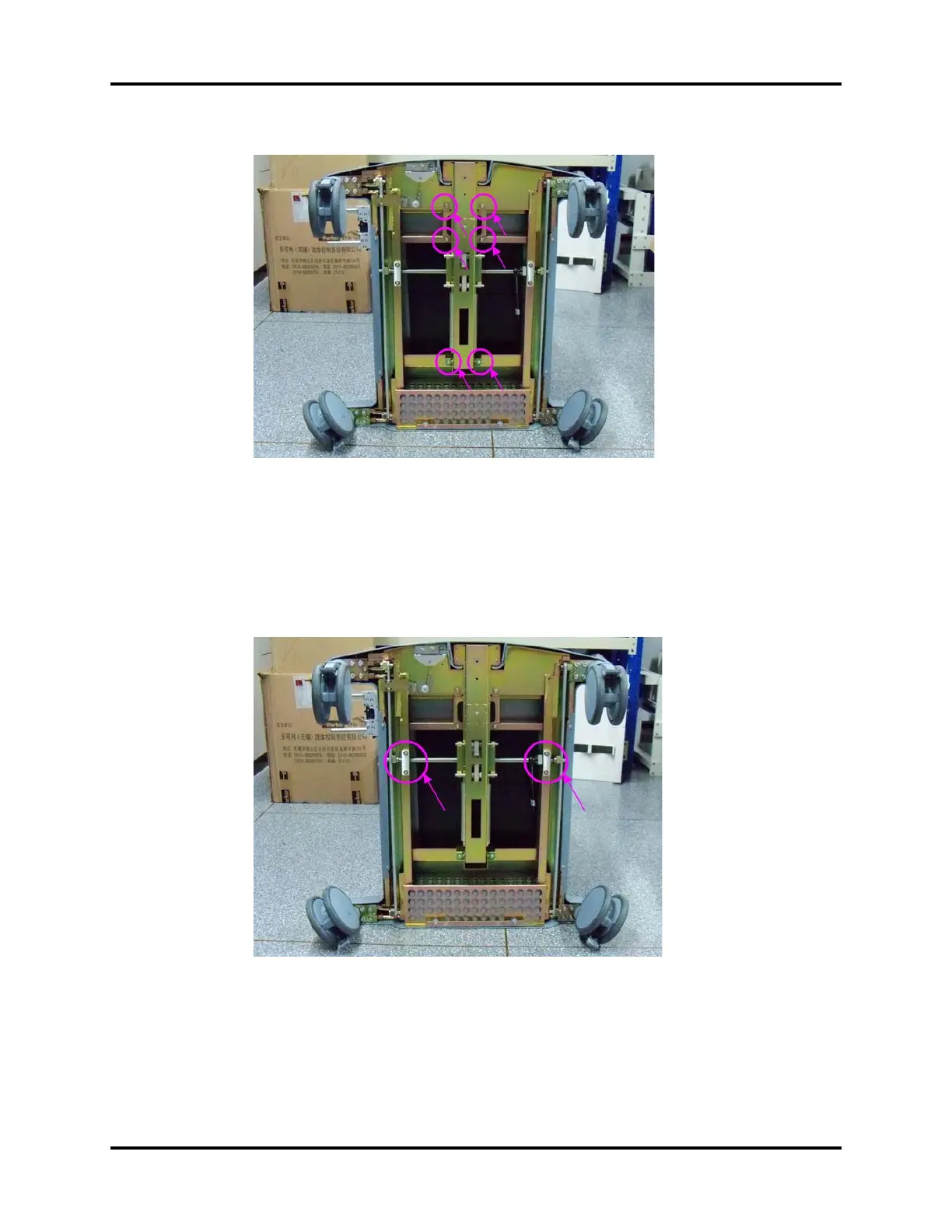

FIGURE 6-87
6.2.11.4 Remove the Brake Main Axis (A5 Only)
1. Tilt A5/A3 backward.
2. Remove brake assembly.
3. Remove the six screws and remove the brake main axis.
FIGURE 6-88
6.2.11.5 Remove the Principal Axis of Brake (A5 Only)
1. Tilt A5/A3 backward.
2. Remove the brake indicator drive plate II.
3. Unscrew the six screws on the brake rod to remove the rod.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
