Mindray A5 Service Manual

Assembly Installation Guide
2 - 8 046-001141-00 A5/A3™ Service Manual

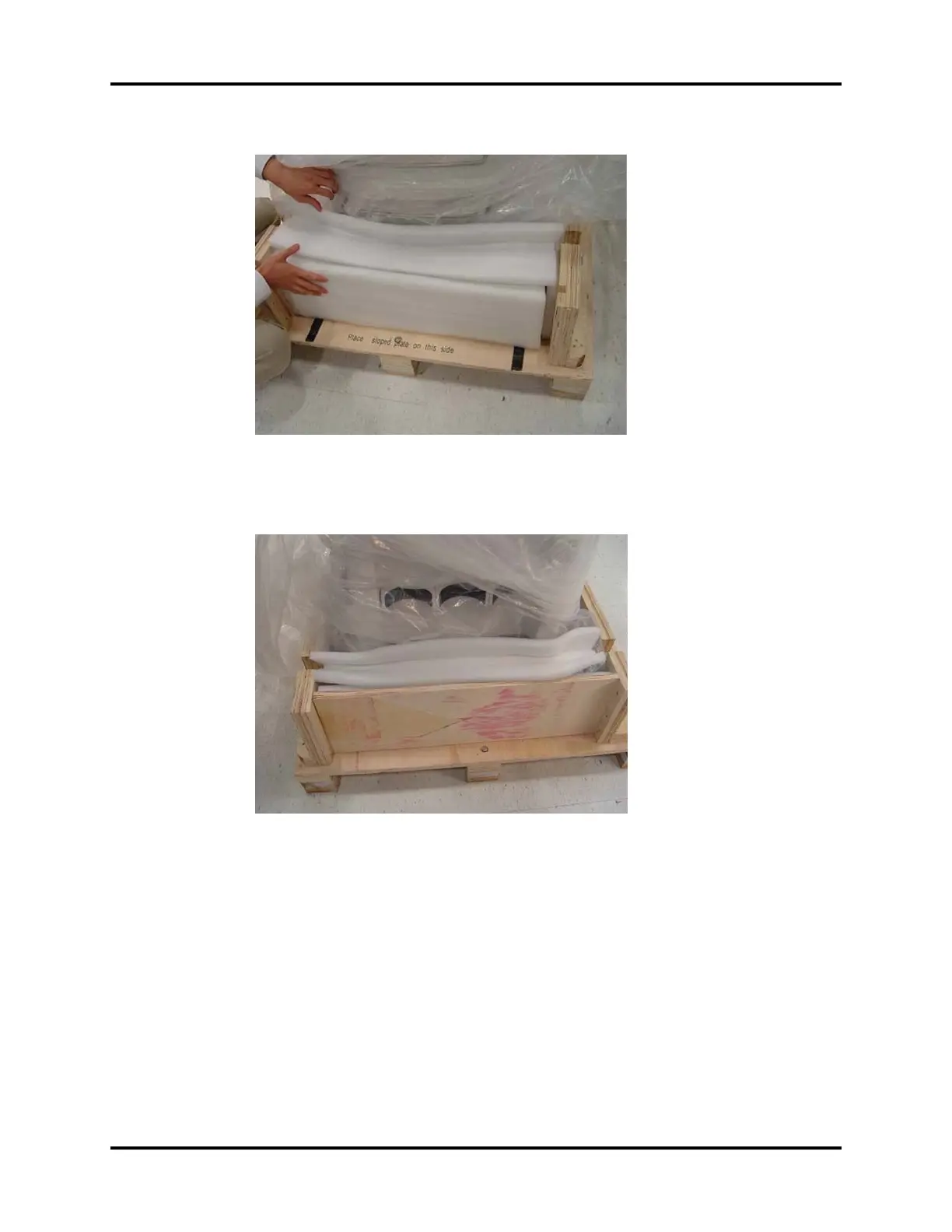

FIGURE 2-10
12. Remove the foam packing material from around the back of the unit.
FIGURE 2-11
13. Create a ramp for the unit by placing the top of the container next to the base of the container
as shown. The flat side of the wood should be facing up. The other side of the wood has support
to hold up the ramp. Secure the ramp to the container using the hook-and-loop straps.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
