Mindray A5 Service Manual

Assembly Installation Guide
2 - 12 046-001141-00 A5/A3™ Service Manual

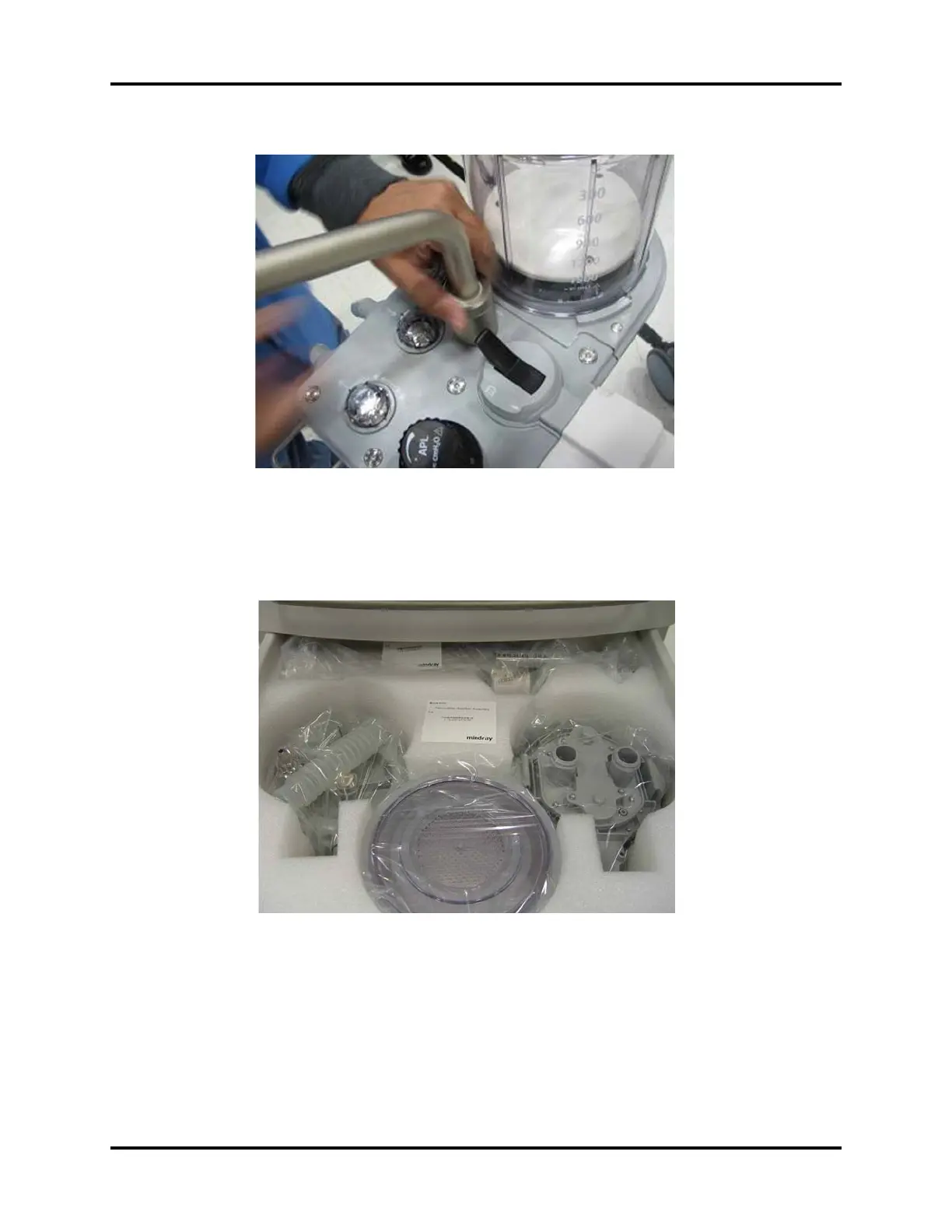

FIGURE 2-18
22. Open the middle and bottom drawers and carefully remove the Removable Absorber Assembly
(P/N: 115-007453-00), Waste Gas Scavenger Hose (P/N: 115-006557-00) and the Waste Gas
Scavenger Assembly (P/N: 115-006556-00).
FIGURE 2-19
23. Install the white Absorber hose on the Absorber Assembly. Then, install the Absorber Assembly
without the canister in place. Install the lower part first, line up the pins with the holes, and then
align the top part. Push the top part in (upward) until both the front and back latches click into
place.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
