Mindray A5 Service Manual

A5/A3™ Service Manual 046-001141-00 2 - 11
Installation Guide Assembly

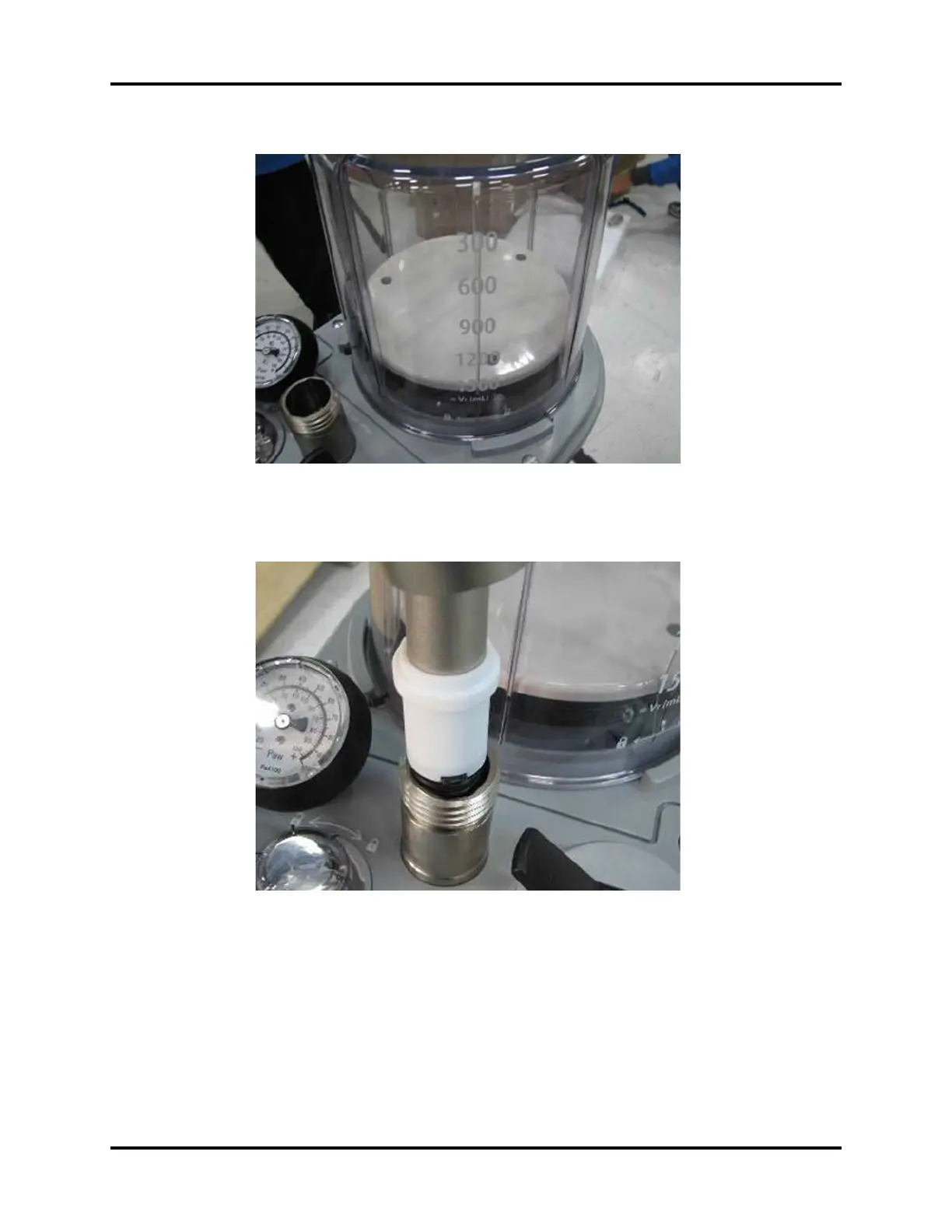

FIGURE 2-16
20. Install the Bag Arm Assembly, aligning the keyed features as shown below.
FIGURE 2-17
21. Then, push the Bag Arm Assembly into the Breathing System and tighten the knurled collar as
shown below. Install the Paw gauge and the water trap on the breathing system.

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
