Mindray A5 Service Manual

Assembly Installation Guide
2 - 10 046-001141-00 A5/A3™ Service Manual

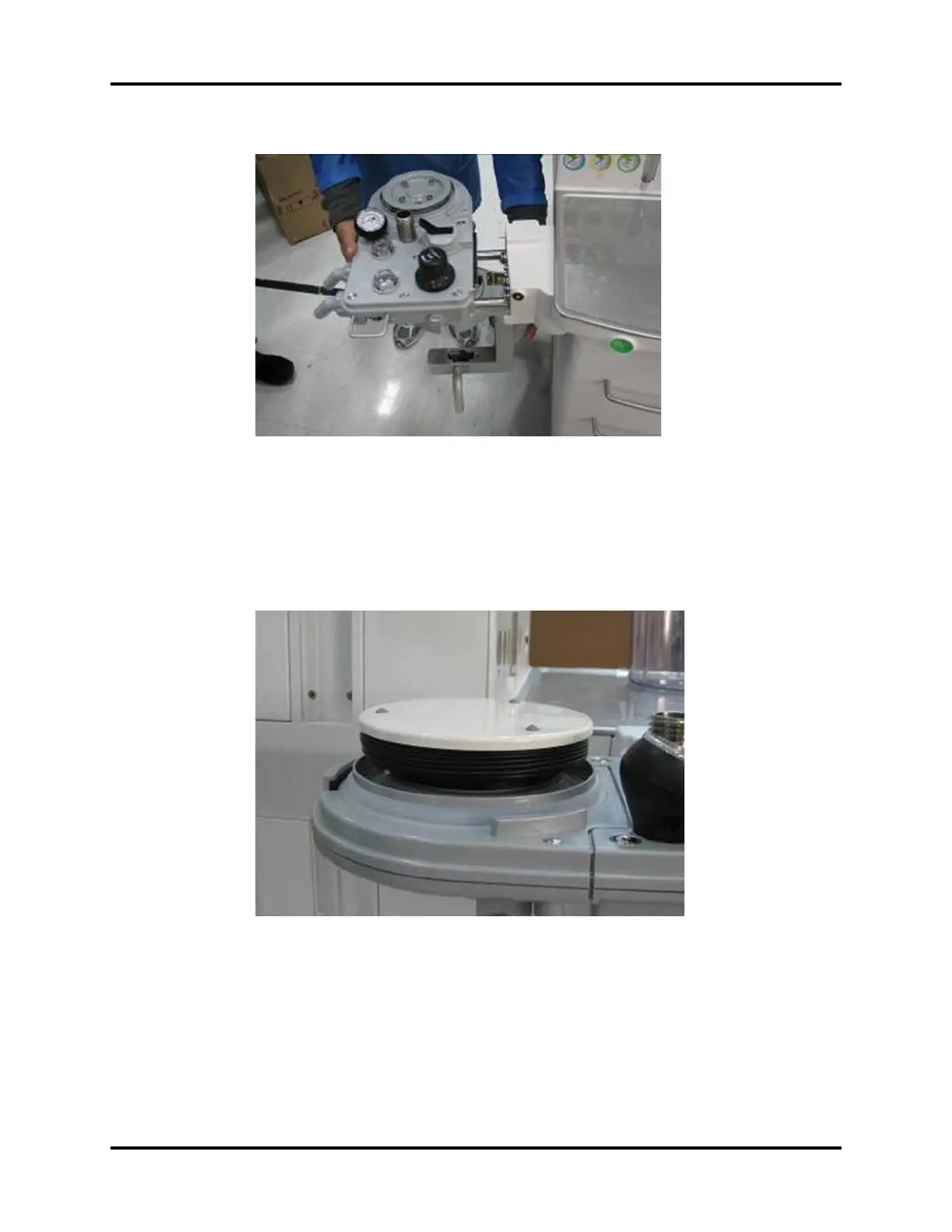

FIGURE 2-14
17. Carefully open the small box that contains the Folding Bag Assembly (Bellows) (P/N: 0601-30-
78968) and Bellows Dome (P/N: 043-001134-00). Remove the plastic bags from the Assembly.
Place the foam pieces and plastic bags in the box.
18. Install the bellows on the Breathing System. Ensure that the bellows is stretched completely
around the lip on the breathing system when installed.
FIGURE 2-15
19. Install the bellows dome by placing it down on the breathing system and turning it clockwise to
lock it in place (the gradation markings on the bellows dome should face front and be visible to
the operator).

Mindray A5 Specifications

General

Type	Anesthesia Machine
Brand	Mindray
Model	A5
Power Supply	100-240 V AC, 50/60 Hz
Ventilation Modes	SIMV, PSV
Flowmeters	O2, N2O, Air
Vaporizer Capacity	Up to 3 vaporizers
Safety Features	O2 failure protection, low pressure alarm
Gas Module	Optional integrated gas module
Integrated Air Compressor	Optional
Patient Monitoring	Integrated monitoring with optional modules
