6-7

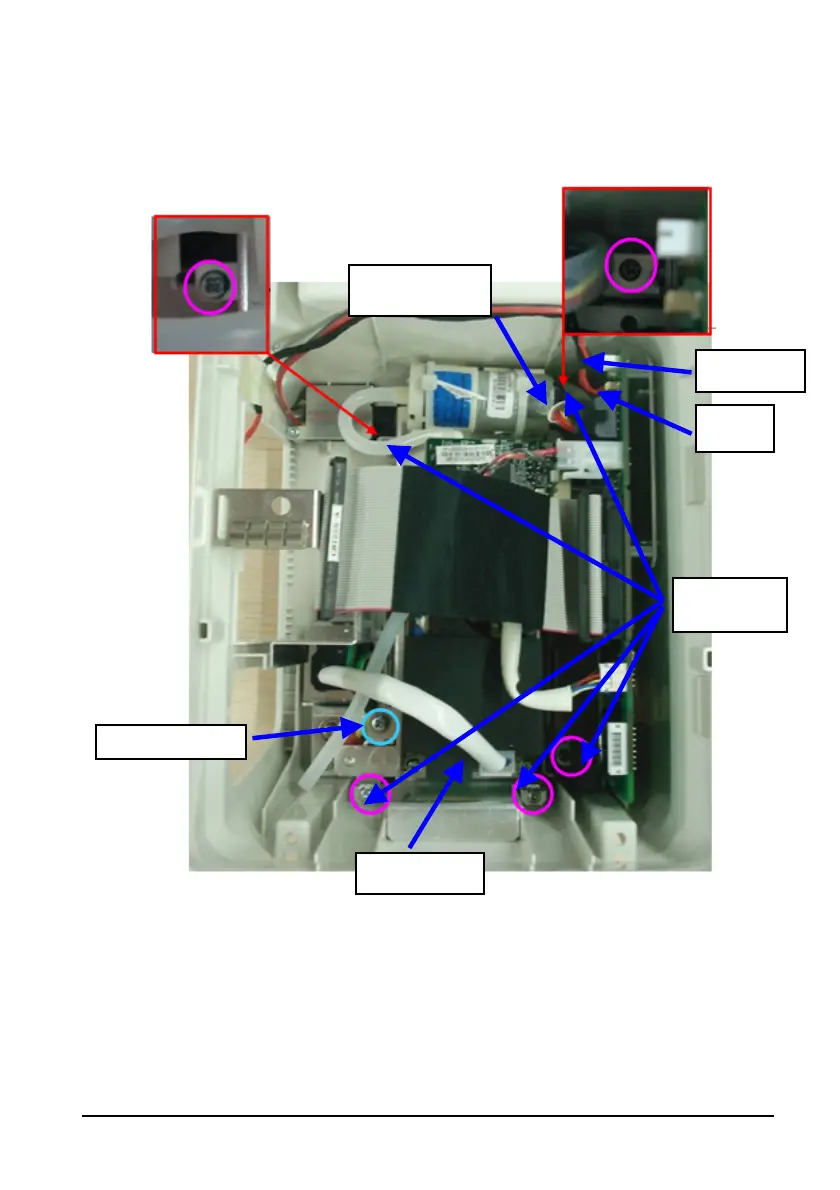

2. Disconnect the speaker cable, recorder cable, power cord and battery interface

board cable.

3. Unscrew the five self-tapping screws and one grounding screw. Then remove the

main bracket assembly.

Recorder

cable

Power cord

Grounding screw

Speaker cable

5 sel

-tapping

screws

Battery interface

board cable
