6.3.8 Disassembling the CO
2
Module Assembly (Only Available for
Accutorr 7)

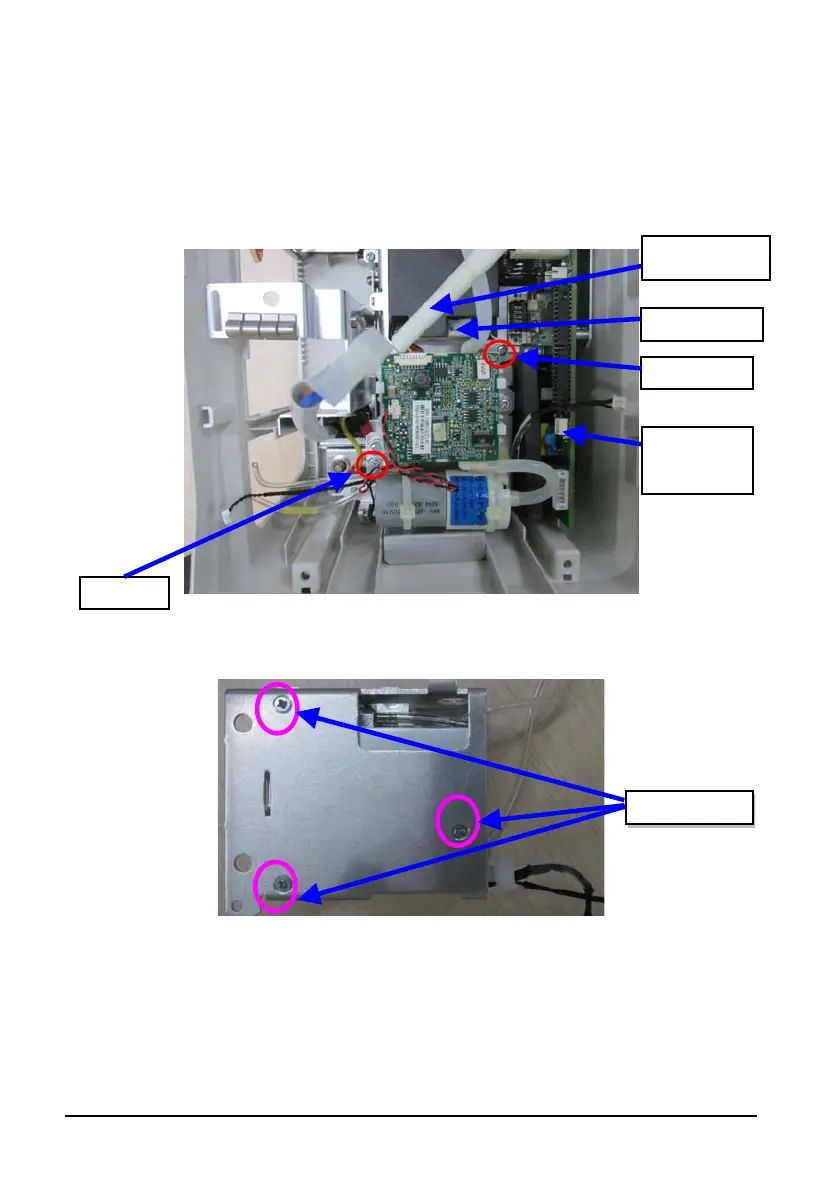

1. Pull out the AC receptacle, NIBP connection cable, CO2 connection cable.
2. Unscrew two M3X6 screws.
3. Remove the CO
2
module.
6.3.9 Disassembling CO2 main Module (Only Available for Accutorr 7)
CO
2
connection
cable
Screw
NIBP connection
cable
AC receptacle
Screw
3XM2.5 screws
