6.3.10 Disassembling the Main Bracket Assembly (With CO
2
, Only
Available for Accutorr 7)

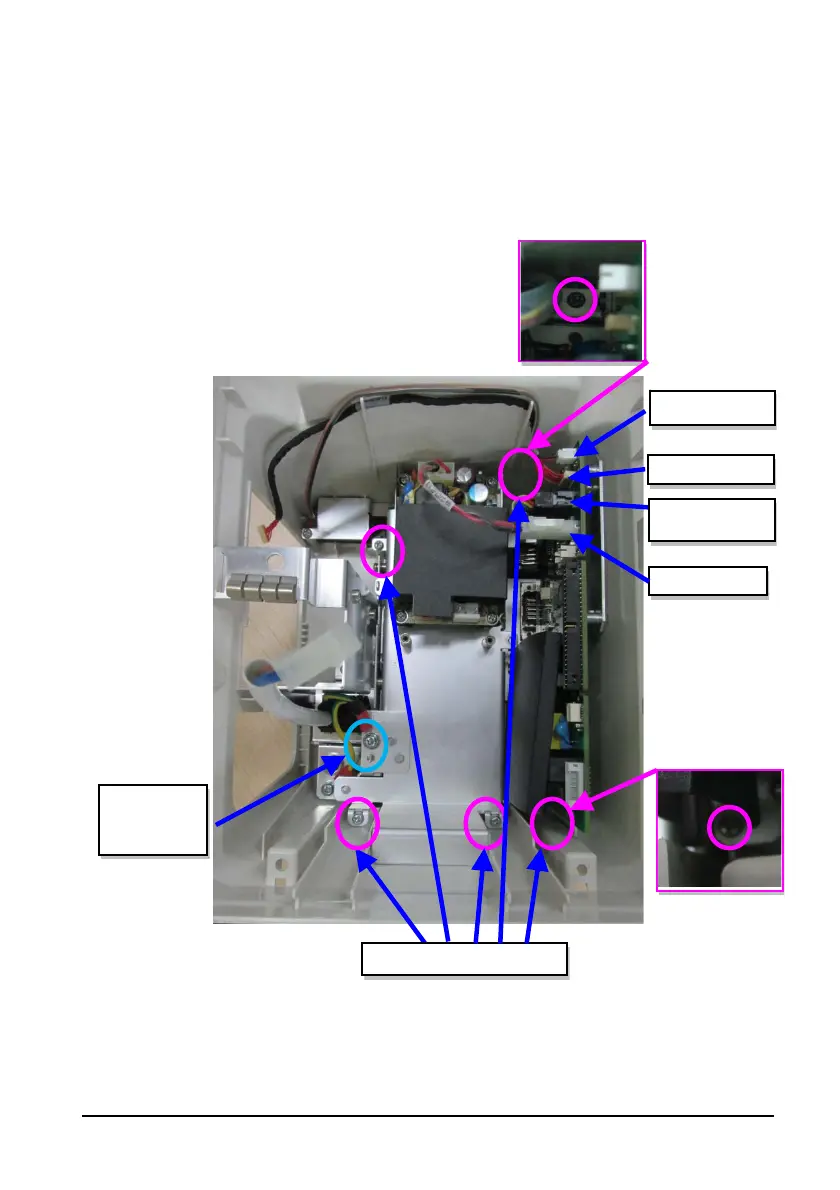

1. Disconnect the speaker cable, recorder cable, power cable, and battery interface board
cable. Unscrew the five PT3×8 screws and M4 screw.
2. Take out the main bracket assembly.
Speaker cable
Recorder cable
Battery
interface board
Power cord
Five sel
f
-tapping screws
One
grounding
screw
