Mindray Accutorr 7 Service Manual

6-19
6.4.8 Removing the Keypad

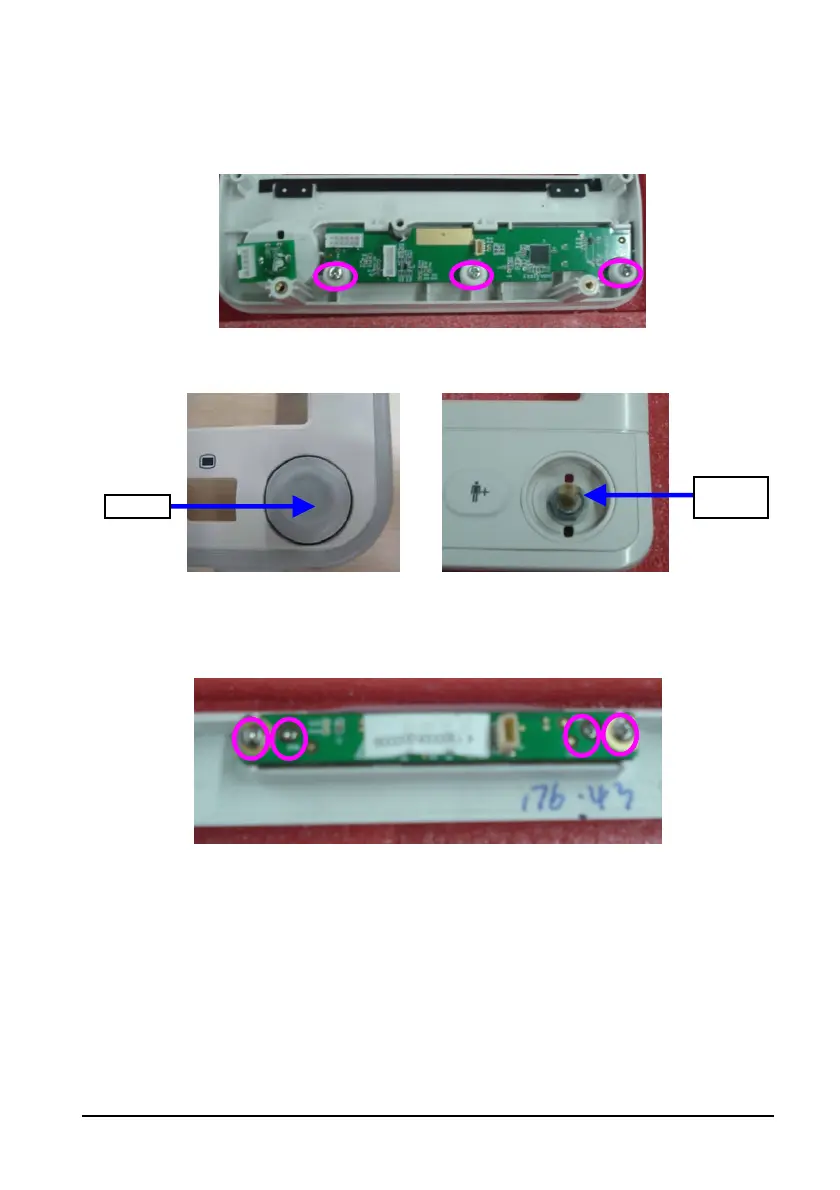

Unplug the encoder cable and unscrew the three PT3×8 screws indicated below. Remove
the keypad.
6.4.9 Removing the Encoder
Pull the knob off the encoder shaft. Remove the retaining nut. Then remove the encoder.
6.4.10 Removing the Alarm Lamp
Unscrew the four PT2×6 screws indicated below and remove the alarm lamp board and
alarm lamp.
Encoder
shaft
Knob
