6-13

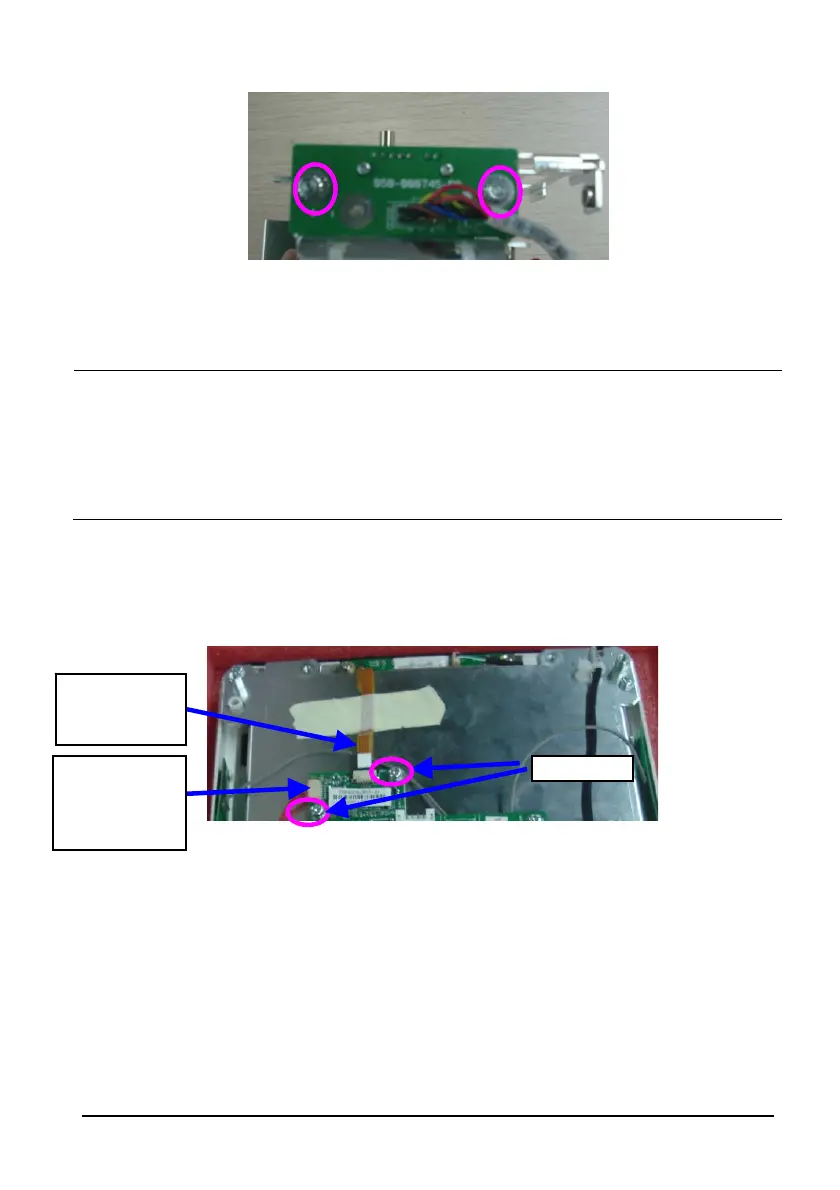

2. Unscrew the two M3 nuts to remove the battery interface board.
6.4 Disassembling the Front Housing Assembly
NOTE
 To disassemble the equipment, place the equipment on a work surface free
from foreign material, avoiding damaging the antiglare screen, touchscreen
and the knob.
 Remember to install the screen support pad properly during reassembly.
 Operations relating to optional parts may not apply to your equipment.
 Position the touchscreen properly with the flexible cable facing down.
6.4.1 Removing the Touchscreen Control Board
Remove the two M3 screws as shown below. Disconnect the cable between main board and
touchscreen board, and the touchscreen control board cable, and then remove the
touchscreen control board.
T
ouchscreen
Control Board
cable
Cable between
the main board
and touchscreen
board
2 M3 screws
