1.8 Display Unit
1.8.1 Function of the Adapter
The LCD adapter connects the LCD to the CPU board.

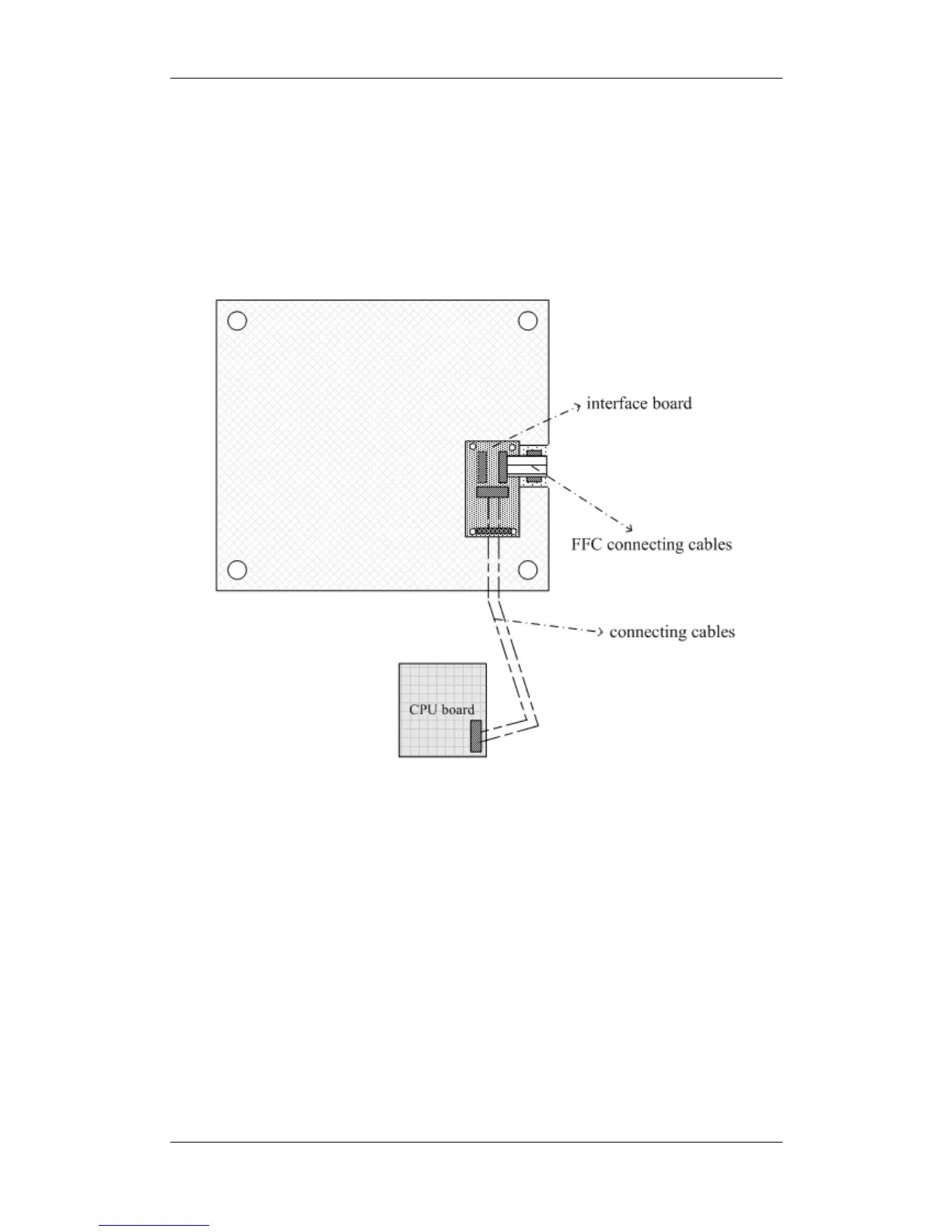

Figure 1-9 Connection Schematic
1.8.2 Introduction of the adapter
The adapter incorporates two FPC/FFC connectors, J2 and J3. The J3 is for the
BC-2800 display while the J2 is reserved for other Mindray analyzer. Only the J2
is installed for the BC-2800. The J1 serves to connect the LCD signal cable.
