Disassembling the Analyzer

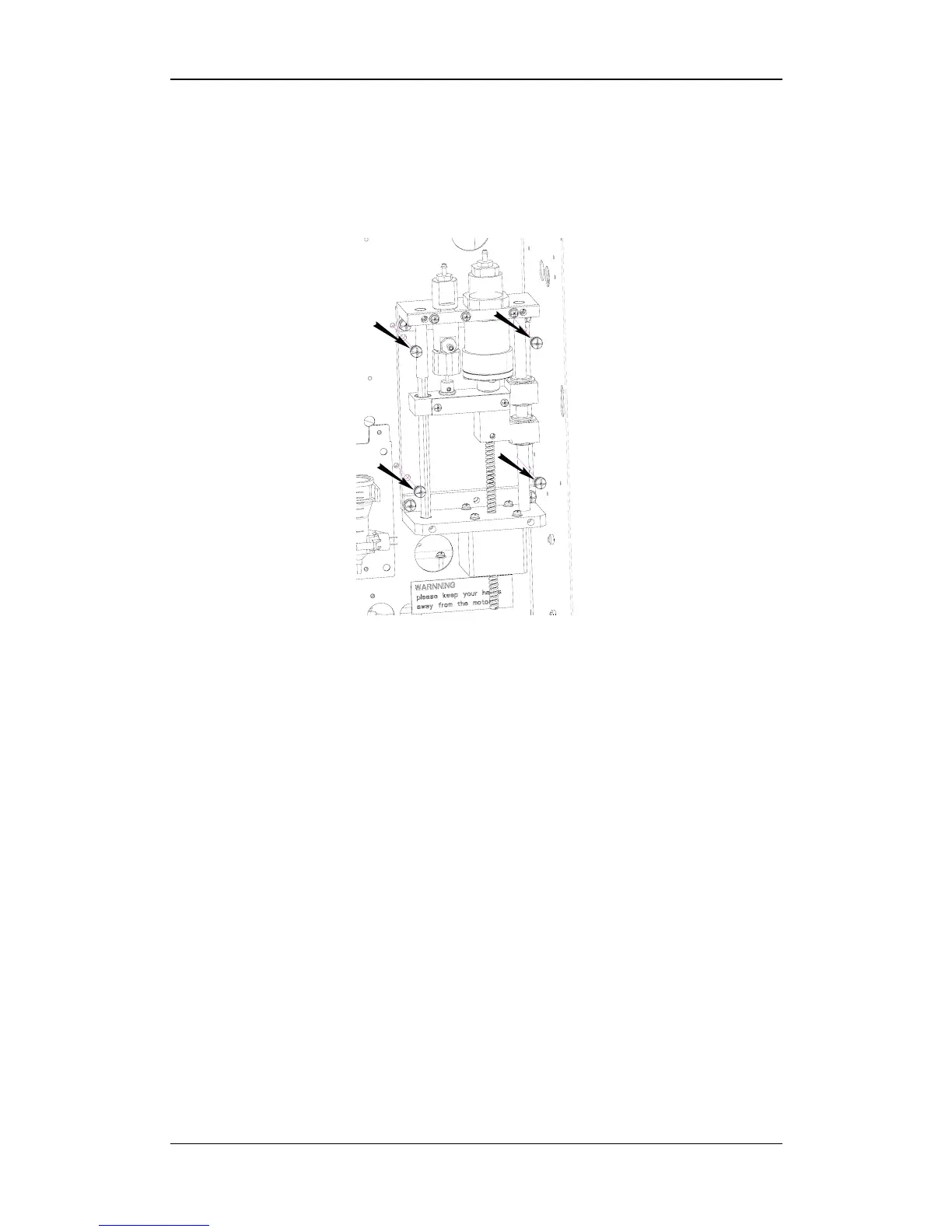

3.2.12 Removing the syringe assembly
As the figure below shows, remove the retaining screws (totally 4) to remove the
assembly.
Figure3-15
3.2.13 Removing the vacuum chamber and volumetric metering
tube assembly
As the figure below shows, remove the retaining screws (4 for each part) to
remove the assembly.
BC-2800 Auto Hematology Analyzer (V1.0) 3- 9
