Getting Started Installing the Batteries
BP10 Operator’s Manual 3 - 5
◆ If lithium-on battery is used, align the raised tab on the upper part of the
lithium-ion battery pack with the cutout in the base of the battery
compartment, as indicated in Figure 3-2.

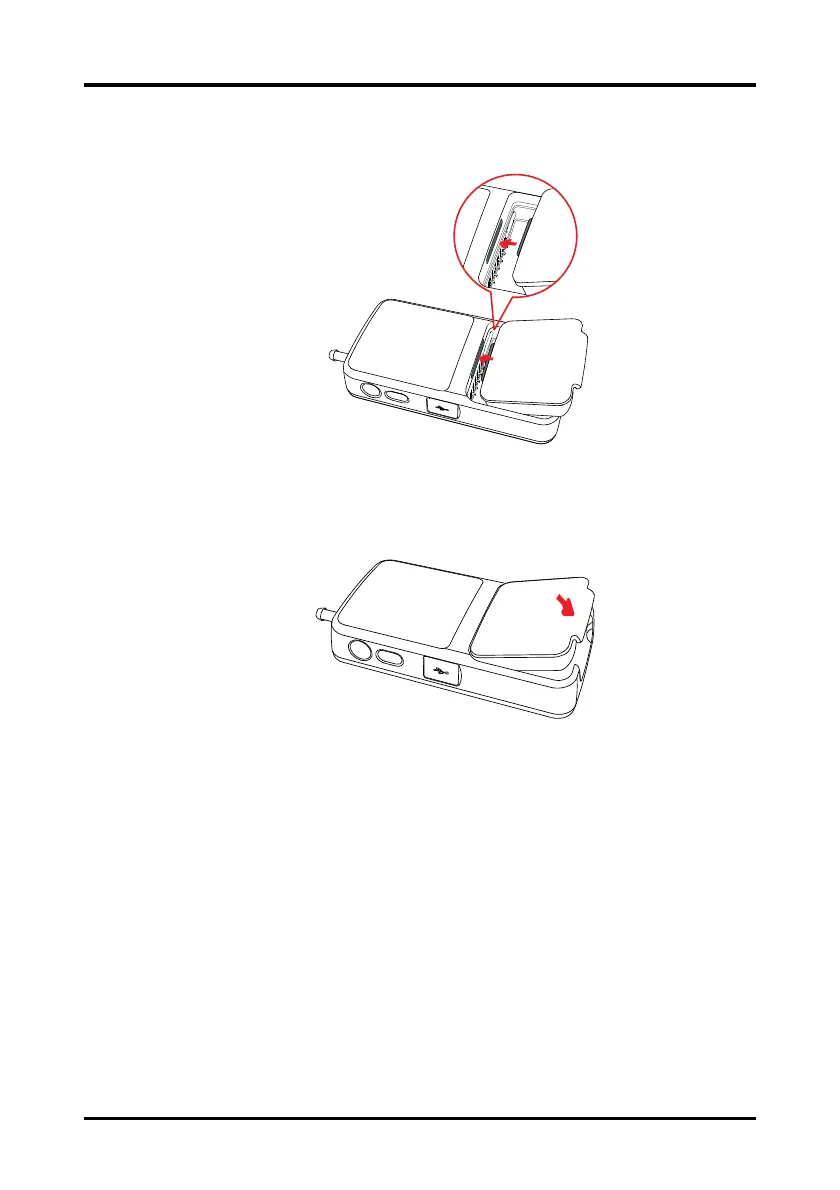

Figure 3-2 Align the Raised Tab on Battery Pack
4. Press down the battery pack until it is installed firmly, as indicated in Figure 3-3.
Figure 3-3 Press down the Battery Pack
