Mindray DC-30 Service Manual

Structure and Assembly/Disassembly 7-25

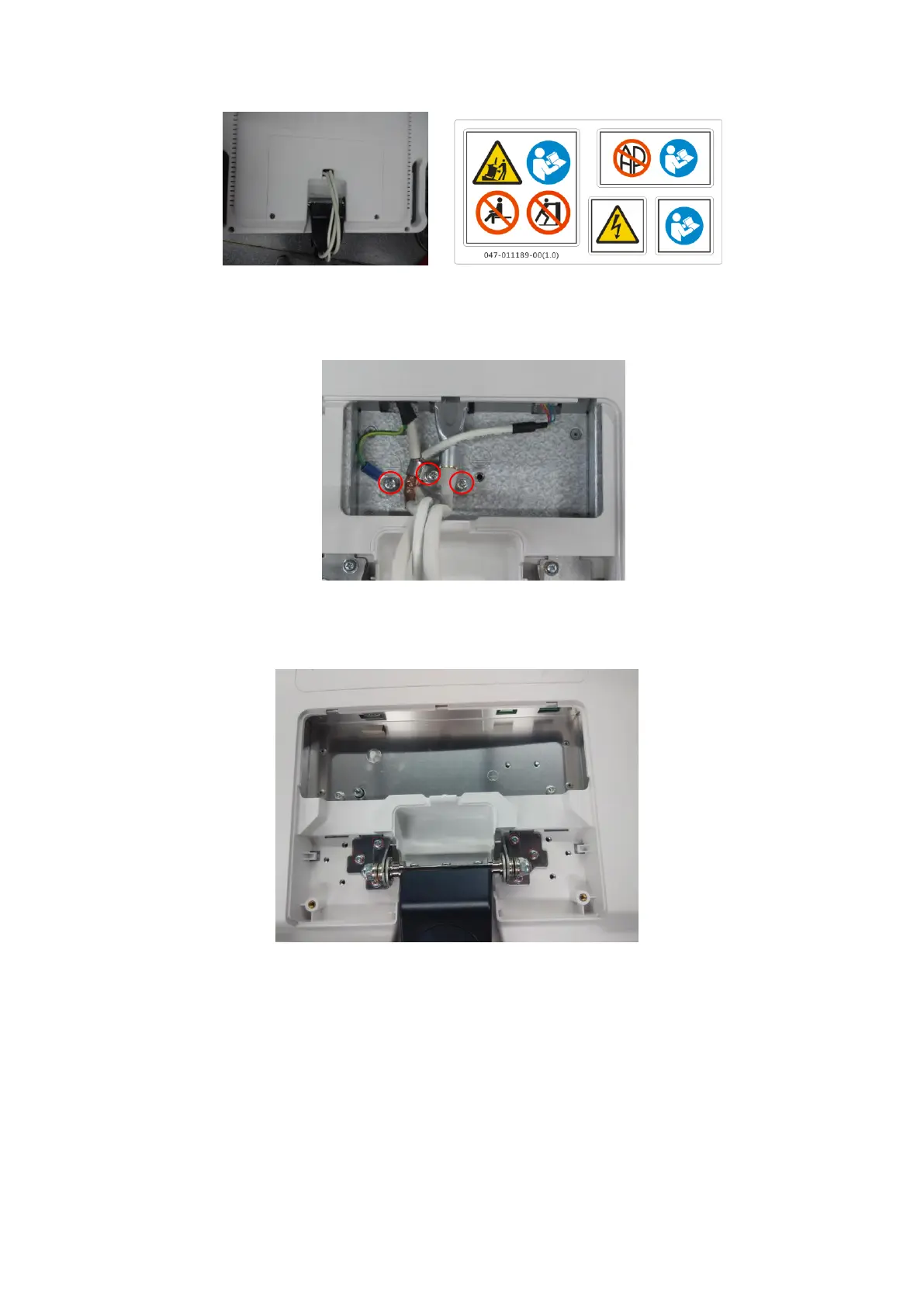

Fig 7-3 Disassemble the Monitor Module (1)
2. Remove the fixing clips, ground wire clip, and the M4X12 screws (3 pcs) securing
the ground wire holder; take out the cable plug.
Fig 7-4 Disassemble the Monitor Module (2)
3. Remove the M4X12 screws (6 pcs) for fixing the monitor.
Fig 7-5 Disassemble the Monitor Module (3)
4. Hold the lateral sides of the monitor and raise the monitor to separate it from the
support arm hooker when the monitor is 20° from the vertical direction, and then
remove the monitor.

Mindray DC-30 Specifications

General

DICOM	Yes
Hard Drive	500 GB
Continuous Wave Doppler	Yes
Tissue Harmonic Imaging	Yes
Relative Humidity	30% to 85% (non-condensing)
Imaging Modes	Color Doppler, Power Doppler
Power Supply	100-240 V~ 50/60 Hz
Probe Connectors	2 active probe connectors
Probe Types	Convex, Linear, Phased Array
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to +55°C
Transducer Ports	2
